2-794666-2

Obsolete

TE Connectivity AMP Connectors

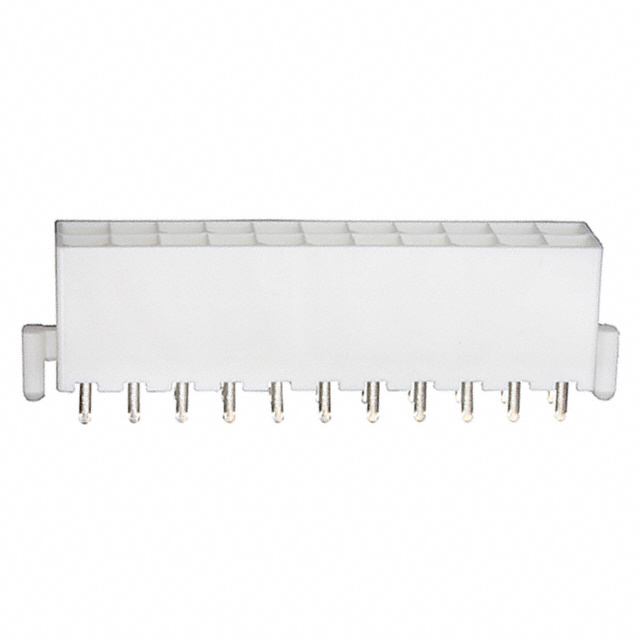

CONN HEADER VERT 22POS 4.2MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HEADER VERT 22POS 4.2MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 22 position 0.165" (4.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2-794666-2	794666 Series

Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	118.1 µin	118.1 µin
Contact Finish Thickness - Mating	3 µm	3 µm
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	12.8 mm	12.8 mm
Insulation Height	0.504 in	0.504 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	22 positions	6 - 22
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	4.2 mm	4.2 mm
Pitch - Mating	0.165 in	0.165 in
Row Spacing - Mating	4.2 mm	4.2 mm
Row Spacing - Mating	0.165 in	0.165 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER VERT 6POS 4.2MM

Part	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Contact Type	Termination	Material Flammability Rating	Contact Shape	Voltage Rating	Mounting Type	Contact Material	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Style	Fastening Type	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Color	Insulation Height	Insulation Height	Connector Type	Number of Rows	Number of Positions	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post
TE Connectivity AMP Connectors 794666-6	All	105 ░C	-55 °C	Tin-Lead	Male Pin	Solder	UL94 V-0	Square	600 VAC	Through Hole	Copper Alloy	Tin-Lead	4.2 mm	0.165 in	Board to Board, Cable	Locking Ramp	4.2 mm	0.165 in	Shrouded - 4 Wall	White	12.8 mm	0.504 in	Header	2	6	Nylon, Polyamide (PA)	118.1 µin	3 µm	3.5 mm	0.138 in
TE Connectivity AMP Connectors 2-794666-0	All	105 ░C	-55 °C	Tin-Lead	Male Pin	Solder	UL94 V-0	Square	600 VAC	Through Hole	Copper Alloy	Tin-Lead	4.2 mm	0.165 in	Board to Board, Cable	Locking Ramp	4.2 mm	0.165 in	Shrouded - 4 Wall	White	12.8 mm	0.504 in	Header	2	20	Nylon, Polyamide (PA)	118.1 µin	3 µm	3.5 mm	0.138 in
TE Connectivity AMP Connectors 2-794666-2	All	105 ░C	-55 °C	Tin-Lead	Male Pin	Solder	UL94 V-0	Square	600 VAC	Through Hole	Copper Alloy	Tin-Lead	4.2 mm	0.165 in	Board to Board, Cable	Locking Ramp	4.2 mm	0.165 in	Shrouded - 4 Wall	White	12.8 mm	0.504 in	Header	2	22 positions	Nylon, Polyamide (PA)	118.1 µin	3 µm	3.5 mm	0.138 in
