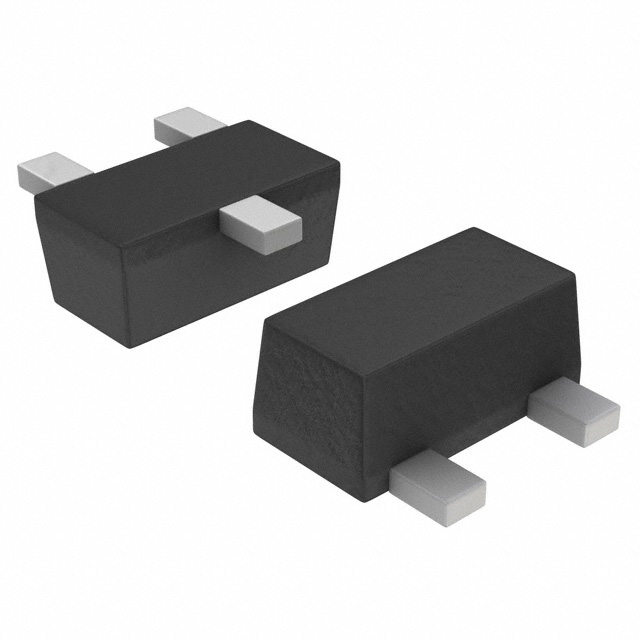

AO5401E

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET P-CH 20V 500MA SC89-3

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET P-CH 20V 500MA SC89-3

Technical Specifications

Parameters and characteristics for this part

Specification	AO5401E

Current - Continuous Drain (Id) @ 25°C	500 mA
Drain to Source Voltage (Vdss)	20 V
Drive Voltage (Max Rds On, Min Rds On)	4.5 V, 1.8 V
FET Type	P-Channel
Input Capacitance (Ciss) (Max) @ Vds	100 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-89, SOT-490
Power Dissipation (Max)	280 mW
Rds On (Max) @ Id, Vgs	800 mOhm
Supplier Device Package	SC-89-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	8 V
Vgs(th) (Max) @ Id	900 mV

MOSFET P-CH 20V 500MA SC89-3

Part	Current - Continuous Drain (Id) @ 25°C	Technology	Power Dissipation (Max)	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Drain to Source Voltage (Vdss)	Package / Case	Vgs(th) (Max) @ Id	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Supplier Device Package
Alpha & Omega Semiconductor Inc. AO5401E	500 mA	MOSFET (Metal Oxide)	280 mW	8 V	-55 °C	150 °C	1.8 V, 4.5 V	Surface Mount	20 V	SC-89, SOT-490	900 mV	P-Channel	100 pF	800 mOhm	SC-89-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

P-Channel 20 V 500mA (Ta) 280mW (Ta) Surface Mount SC-89-3
