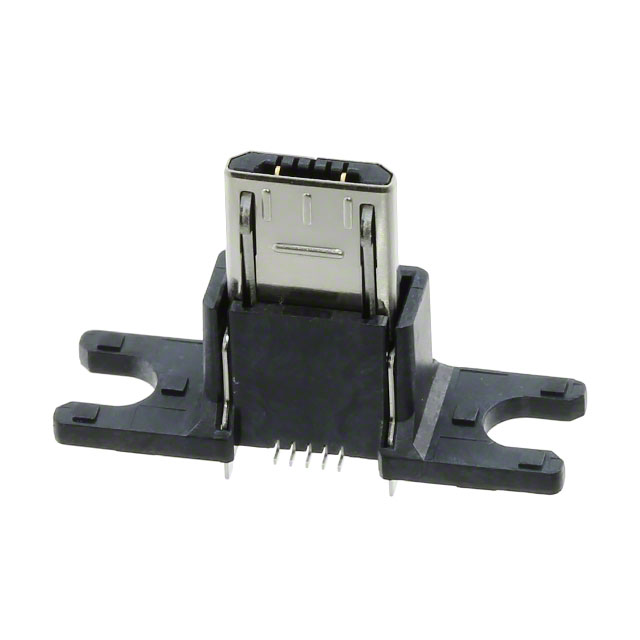

ZX80-B-5S(30)

Active

Hirose Electric Co Ltd

CONN PLUG USB2.0 MICRO B SMD

Search across all available documentation for this part.

Active

Hirose Electric Co Ltd

CONN PLUG USB2.0 MICRO B SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZX80-B-5S(30)	ZX80 Series

Connector Type	USB - micro B	USB - micro B
Contact Finish	Gold	Gold
Current Rating (Amps)	1.8 A	1.8 A
Gender	Plug	Receptacle, Plug
Insulation Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	10000	10000
Mounting Feature	Flange, Vertical	Vertical, Flange, Vertical
Mounting Type	Surface Mount, Through Hole	Surface Mount, Through Hole
Number of Contacts	5	5
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Shell/Shielding Material	Stainless, Steel	Stainless, Steel
Shielding	Shielded	Shielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

CONN RCPT USB2.0 MICRO B SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell/Shielding Material	Current Rating (Amps)	Gender	Mounting Type	Number of Ports	Voltage - Rated	Material Flammability Rating	Mating Cycles	Number of Contacts	Contact Finish	Connector Type	Mounting Feature	Shielding	Specifications	Insulation Color	Termination
Hirose Electric Co Ltd ZX80-B-5P(31)	-30 ░C	85 °C	Stainless, Steel	1.8 A	Receptacle	Surface Mount, Through Hole	1	30 VAC	UL94 V-0	10000	5	Gold	USB - micro B	Vertical	Shielded	USB 2.0	Black	Solder
Hirose Electric Co Ltd ZX80-B-5SA(31)	-30 ░C	85 °C	Stainless, Steel	1.8 A	Plug	Surface Mount, Through Hole	1	30 VAC	UL94 V-0	10000	5	Gold	USB - micro B	Flange, Vertical	Shielded	USB 2.0	Black	Solder
Hirose Electric Co Ltd ZX80-B-5S(31)	-30 ░C	85 °C	Stainless, Steel	1.8 A	Plug	Surface Mount, Through Hole	1	30 VAC	UL94 V-0	10000	5	Gold	USB - micro B	Flange, Vertical	Shielded	USB 2.0	Black	Solder
Hirose Electric Co Ltd ZX80-B-5S(30)	-30 ░C	85 °C	Stainless, Steel	1.8 A	Plug	Surface Mount, Through Hole	1	30 VAC	UL94 V-0	10000	5	Gold	USB - micro B	Flange, Vertical	Shielded	USB 2.0	Black	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Plug Connector 5 Position Surface Mount, Through Hole
