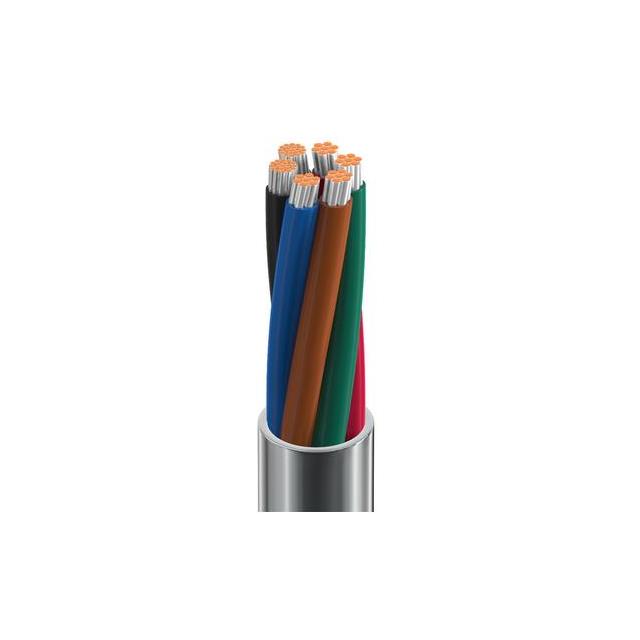

8446 060U500

Active

Belden Inc.

CABLE 6CON 18AWG/22AWG CHRM

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6CON 18AWG/22AWG CHRM

Technical Specifications

Parameters and characteristics for this part

Specification	8446 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19, 7
Conductor Strand [custom]	30
Jacket (Insulation) Diameter [diameter]	5.99 mm
Jacket (Insulation) Diameter [diameter]	0.236 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG, 18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Number of Conductors	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Material	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Wire Gauge	Jacket Color
Belden Inc. 8446 060500	-20 C	80 C	UL Style 2576	5.99 mm	0.236 in	Multi-Conductor	6	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	7 19	30	Copper Tinned	18 AWG 22 AWG	Chrome
Belden Inc. 8446 060U500	-20 C	80 C	UL Style 2576	5.99 mm	0.236 in	Multi-Conductor	6	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	7 19	30	Copper Tinned	18 AWG 22 AWG	Chrome
Belden Inc. 8446 060100	-20 C	80 C	UL Style 2576	5.99 mm	0.236 in	Multi-Conductor	6	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	7 19	30	Copper Tinned	18 AWG 22 AWG	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.93

General part information

6 Conductor Multi-Conductor Cable Chrome 18 AWG, 22 AWG 500.0' (152.4m)
