AT-K-C-26-8-B/14

Active

Assmann WSW Components

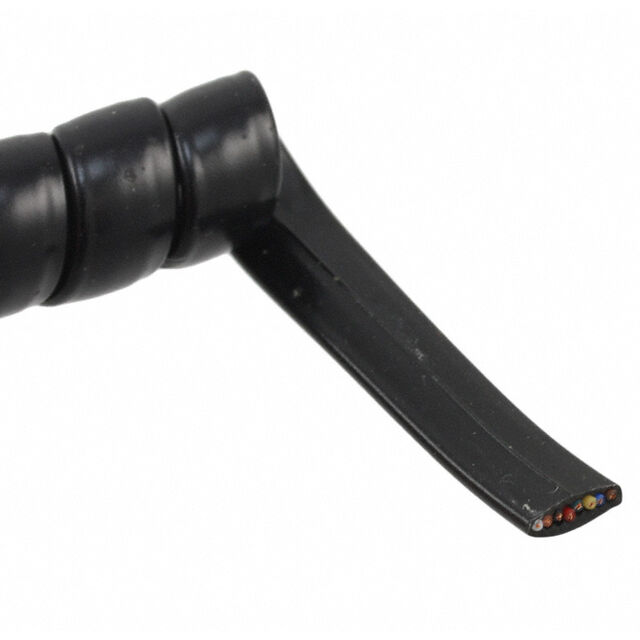

CABLE MOD COIL 8COND BLACK 14'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT-K-C-26-8-B/14

Active

Assmann WSW Components

CABLE MOD COIL 8COND BLACK 14'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT-K-C-26-8-B/14

Cable Height	0.097 in
Cable Height	2.46 mm
Cable Type	Coil
Cable Width	0.346 in
Cable Width	8.8 mm
Coil Diameter [diameter]	0.591 in
Coil Diameter [diameter]	15 mm
Conductor Material	Copper, Bare
Conductor Strand [x]	7
Conductor Strand [y]	0.0063 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length - Coil Extended [x]	14 ft
Length - Coil Extended [x]	4.27 m
Length - Coil Retracted [x]	6.25 ft
Length - Coil Retracted [x]	1.9 m
Number of Conductors	8
Wire Gauge	26 AWG

AT-K-C-2 Series

Part	Jacket (Insulation) Material	Number of Conductors	Jacket Color	Conductor Material	Conductor Strand [x]	Conductor Strand [y]	Coil Diameter [diameter]	Coil Diameter [diameter]	Wire Gauge	Cable Height	Cable Height	Cable Width	Cable Width	Length - Coil Extended [x]	Length - Coil Extended [x]	Cable Type	Length - Coil Retracted	Length - Coil Retracted	Length - Coil Retracted [x]	Length - Coil Retracted [x]	Cable Width	Length - Coil Extended	Length - Coil Extended
Assmann WSW Components AT-K-C-26-8-S/5	Poly-Vinyl Chloride (PVC)	8	Silver	Copper Bare	7	0.0063 in	0.591 in	15 mm	26 AWG	0.097 in	2.46 mm	0.346 in	8.8 mm	1.52 m	5 ft	Coil	2.33 ft	0.71 m
Assmann WSW Components AT-K-C-26-4-S/14	Poly-Vinyl Chloride (PVC)	4	Silver	Copper Bare	7	0.0063 in	0.512 in	13 mm	26 AWG	0.097 in	2.46 mm	0.189 in	4.8 mm	4.27 m	14 ft	Coil			6.25 ft	1.9 m
Assmann WSW Components AT-K-C-26-6-S/7	Poly-Vinyl Chloride (PVC)	6	Silver	Copper Bare	7	0.0063 in	0.512 in	13 mm	26 AWG	0.097 in	2.46 mm		0.267 in	2.13 m	7 ft	Coil	1 m	3.28 ft			6.8 mm
Assmann WSW Components AT-K-C-26-8-W/5	Poly-Vinyl Chloride (PVC)	8		Copper Bare	7	0.0063 in	0.591 in	15 mm	26 AWG	0.097 in	2.46 mm	0.346 in	8.8 mm	1.52 m	5 ft	Coil	2.33 ft	0.71 m
Assmann WSW Components AT-K-C-26-6-S/10	Poly-Vinyl Chloride (PVC)	6	Silver	Copper Bare	7	0.0063 in	0.512 in	13 mm	26 AWG	0.097 in	2.46 mm		0.267 in			Coil		1.5 m	4.92 ft		6.8 mm	10 ft	3.05 m
Assmann WSW Components AT-K-C-26-4-B/10	Poly-Vinyl Chloride (PVC)	4	Black	Copper Bare	7	0.0063 in	0.512 in	13 mm	26 AWG	0.097 in	2.46 mm	0.189 in	4.8 mm			Coil		1.5 m	4.92 ft			10 ft	3.05 m
Assmann WSW Components AT-K-C-26-8-B/14	Poly-Vinyl Chloride (PVC)	8	Black	Copper Bare	7	0.0063 in	0.591 in	15 mm	26 AWG	0.097 in	2.46 mm	0.346 in	8.8 mm	4.27 m	14 ft	Coil			6.25 ft	1.9 m
Assmann WSW Components AT-K-C-26-8-W/7	Poly-Vinyl Chloride (PVC)	8		Copper Bare	7	0.0063 in	0.591 in	15 mm	26 AWG	0.097 in	2.46 mm	0.346 in	8.8 mm	2.13 m	7 ft	Coil	1 m	3.28 ft
Assmann WSW Components AT-K-C-26-4-S/5	Poly-Vinyl Chloride (PVC)	4	Silver	Copper Bare	7	0.0063 in	0.512 in	13 mm	26 AWG	0.097 in	2.46 mm	0.189 in	4.8 mm	1.52 m	5 ft	Coil			1.08 ft	0.33 m
Assmann WSW Components AT-K-C-26-6-B/5	Poly-Vinyl Chloride (PVC)	6	Black	Copper Bare	7	0.0063 in	0.512 in	13 mm	26 AWG	0.097 in	2.46 mm		0.267 in	1.52 m	5 ft	Coil	2.33 ft	0.71 m			6.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.95
		5	$ 0.85
		14	$ 0.79
		28	$ 0.75
		56	$ 0.71
		112	$ 0.68

Description

General part information

AT-K-C-2 Series

8 Conductor Modular Coil Cable Black 14' (4.27m)

Documents

Technical documentation and resources
