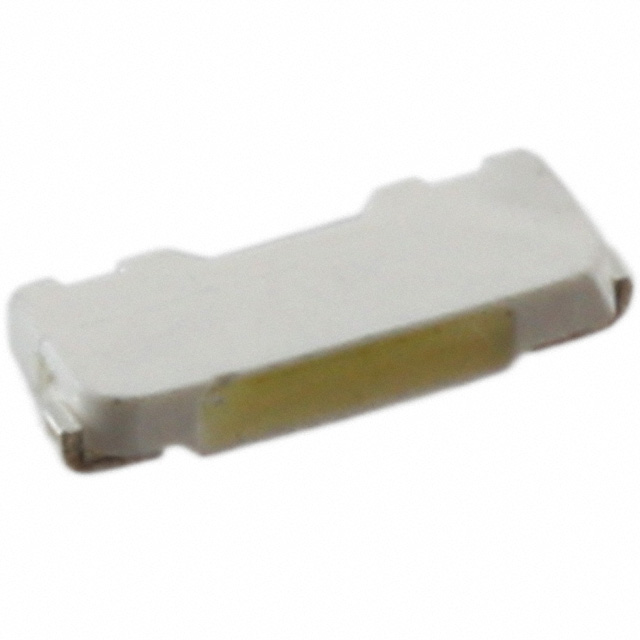

LTW-006DCG-5
ActiveDiodes Inc
LED WHITE SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTW-006DCG-5
ActiveDiodes Inc
LED WHITE SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTW-006DCG-5 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] | 0.6 mm |
| Lens Color | Yellow |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 600 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.8 mm |
| Size / Dimension [y] | 1.2 mm |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
| 4000 | $ 0.14 | |||
| 6000 | $ 0.13 | |||
| 10000 | $ 0.13 | |||
| 14000 | $ 0.13 | |||
| 20000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
LTW-006 Series
White LED Indication - Discrete 2.8V 2-SMD, No Lead
Documents
Technical documentation and resources
