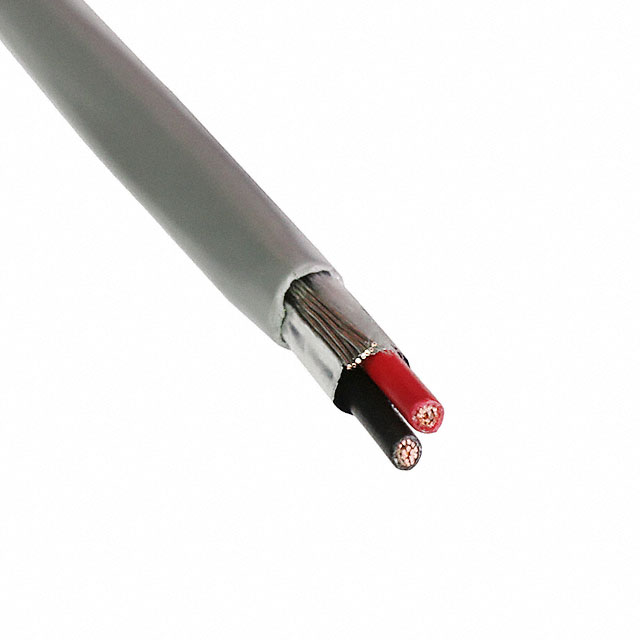

Specification	E2042S.30.10

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand Count	19
Conductor Strand Diameter	0.0117 in
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter	0.183 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Gray
Length	1000 ft
Number of Conductors	2
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Shield Type	Foil
Usage	Alarm, Sound, Security
Voltage	300 V
Wire Gauge	16 AWG

E2042S Series

Part	Voltage	Shield Type	Number of Conductors	Jacket (Insulation) Material	Features	Cable Type	Jacket Color	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Diameter	Conductor Strand Diameter	Conductor Strand Count	Operating Temperature (Min)	Operating Temperature (Max)	Length	Conductor Insulation	Usage	Wire Gauge	Shield Material	Shield Coverage
Prysmian Group E2042S.30.10	300 V	Foil	2	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	Conductor Multi	Gray	0.015 in	Bare Copper	0.183 in	0.0117 in	19	-20 °C	75 °C	1000 ft	Poly-Vinyl Chloride (PVC)	Alarm Security Sound	16 AWG
Prysmian Group E2042S.30.10	300 V	Foil	2	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	Conductor Multi	Gray	0.015 in	Bare Copper	0.183 in	0.0117 in	19	-20 °C	75 °C	100 ft 1000 ft	Poly-Vinyl Chloride (PVC)	Alarm Security Sound	16 AWG	Flexfoil®	100 %
Prysmian Group E2042S.41.10	300 V	Foil	2	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	Conductor Multi	Gray	0.015 in	Bare Copper	0.183 in	0.0117 in	19	-20 °C	75 °C	50 ft 100 ft 500 ft 1000 ft	Poly-Vinyl Chloride (PVC)	Alarm Security Sound	16 AWG
Prysmian Group E2042S.18.10	300 V	Foil	2	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	Conductor Multi	Gray	0.015 in	Bare Copper	0.183 in	0.0117 in	19	-20 °C	75 °C	500 ft	Poly-Vinyl Chloride (PVC)	Alarm Security Sound	16 AWG	Flexfoil®	100 %
Prysmian Group E2042S.25.10	300 V	Foil	2	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	Conductor Multi	Gray	0.015 in	Bare Copper	0.183 in	0.0117 in	19	-20 °C	75 °C	500 ft	Poly-Vinyl Chloride (PVC)	Alarm Security Sound	16 AWG	Flexfoil®	100 %
Prysmian Group E2042S.18.10	300 V	Foil	2	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	Conductor Multi	Gray	0.015 in	Bare Copper	0.183 in	0.0117 in	19	-20 °C	75 °C	500 ft	Poly-Vinyl Chloride (PVC)	Alarm Security Sound	16 AWG
Prysmian Group E2042S.41.10	300 V	Foil	2	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	Conductor Multi	Gray	0.015 in	Bare Copper	0.183 in	0.0117 in	19	-20 °C	75 °C	50 ft 100 ft 500 ft 1000 ft	Poly-Vinyl Chloride (PVC)	Alarm Security Sound	16 AWG	Flexfoil®	100 %
