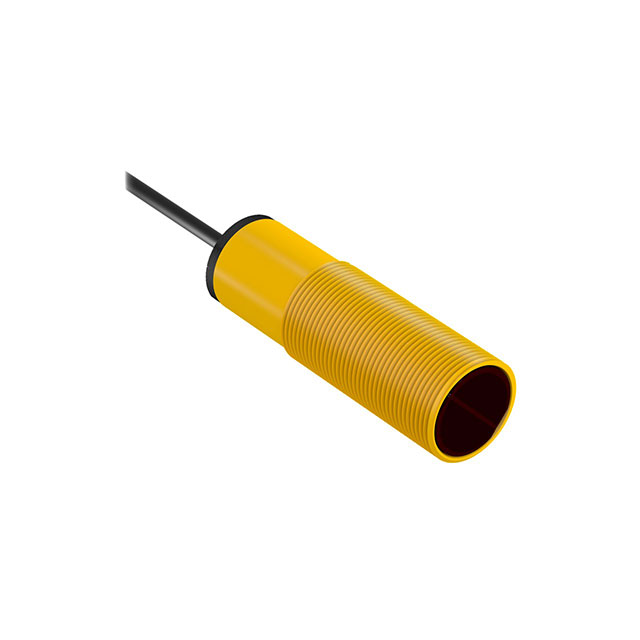

S18SN6L

Active

BANNER ENGINEERING

EZ-BEAM S18 SERIES: RETRO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S18SN6L

Active

BANNER ENGINEERING

EZ-BEAM S18 SERIES: RETRO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S18SN6L

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IEC IP69K, IEC IP67, NEMA 6P
Light Source	Infrared (950nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN - Dark-ON/Light-ON
Response Time	3 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	NonPolarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

S18SN6 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance	Sensing Method	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Light Source	Connection Method	Ingress Protection	Cable Length	Cable Length
BANNER ENGINEERING S18SN6FF100Q	-40 °C	70 °C	3.937 in	100 mm	Background Suppression	3 ms	30 VDC	10 VDC	NPN - Dark-ON/Light-ON	Infrared LED	Connector	IEC IP69K NEMA 6P
BANNER ENGINEERING S18SN6DL W/30	-40 °C	70 °C	11.811 in	300 mm	Diffuse	3 ms	30 VDC	10 VDC		Infrared	Cable	IEC IP67 IEC IP69K NEMA 6P	354.33 in	9 m
BANNER ENGINEERING S18SN6D-25842	-40 °C	70 °C	3.937 in	100 mm	Diffuse	3 ms	30 VDC	10 VDC	NPN - Light-ON	LED	Cable	IEC IP67 IEC IP69K NEMA 6P	78.74 in	2 m
BANNER ENGINEERING S18SN6R W/30	-40 °C	70 °C	787.402 in	20 m	Through-Beam	3 ms	30 VDC	10 VDC		Infrared (950nm)	Cable	IEC IP67 IEC IP69K NEMA 6P	354.33 in	9 m
BANNER ENGINEERING S18SN6D	-40 °C	70 °C	3.937 in	100 mm	Diffuse	3 ms	30 VDC	10 VDC	NPN - Dark-ON/Light-ON	Infrared	Cable	IEC IP67 IEC IP69K NEMA 6P	78.74 in	2 m
BANNER ENGINEERING S18SN6DL	-40 °C	70 °C	11.811 in	300 mm	Diffuse	3 ms	30 VDC	10 VDC	NPN - Dark-ON/Light-ON	Infrared	Cable	IEC IP67 IEC IP69K NEMA 6P	78.74 in	2 m
BANNER ENGINEERING S18SN6RQ	-40 °C	70 °C	787.402 in	20 m	Through-Beam	3 ms	30 VDC	10 VDC	NPN - Dark-ON/Light-ON	Infrared LED	Connector	IEC IP69K NEMA 6P
BANNER ENGINEERING S18SN6DQ	-40 °C	70 °C	3.937 in	100 mm	Diffuse	3 ms	30 VDC	10 VDC	NPN - Dark-ON/Light-ON	Infrared LED	Connector	IEC IP69K NEMA 6P
BANNER ENGINEERING S18SN6FF50	-40 °C	70 °C	1.969 in	50 mm	Background Suppression	3 ms	30 VDC	10 VDC	NPN - Dark-ON/Light-ON	Infrared	Cable	IEC IP67 IEC IP69K NEMA 6P	78.74 in	2 m
BANNER ENGINEERING S18SN6L	-40 °C	70 °C	78.74 "	2 m	NonPolarized Retroreflective	3 ms	30 VDC	10 VDC	NPN - Dark-ON/Light-ON	Infrared (950nm)	Cable	IEC IP67 IEC IP69K NEMA 6P	78.74 in	2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 65.00
Newark	Each	1	$ 66.00

Description

General part information

S18SN6 Series

Retroreflective, NonPolarized Optical Sensor 78.740" (2m) NPN - Dark-ON/Light-ON

Documents

Technical documentation and resources
