1140-0-01-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA TIN
Deep-Dive with AI
Search across all available documentation for this part.
Documents11x0,07x0 Brochure
1140-0-01-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA TIN
Deep-Dive with AI
Documents11x0,07x0 Brochure
Technical Specifications
Parameters and characteristics for this part
| Specification | 1140-0-01-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.96 mm |
| Length - Above Flange [x] | 0.274 in |
| Length - Overall [x] | 11.48 mm |
| Length - Overall [x] | 0.452 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.13 | |
| 10 | $ 0.11 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.06 | |||
Description
General part information
1140-0 Series

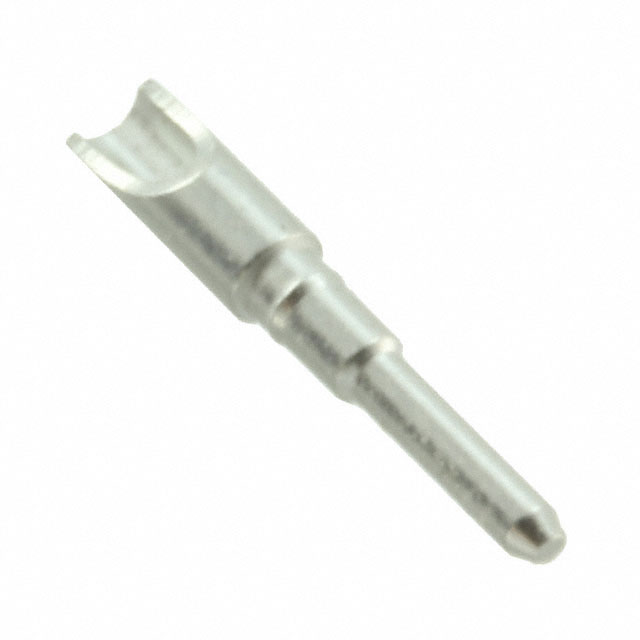

PC Pin Terminal Connector Through Hole Tin 0.040" (1.02mm) Dia
