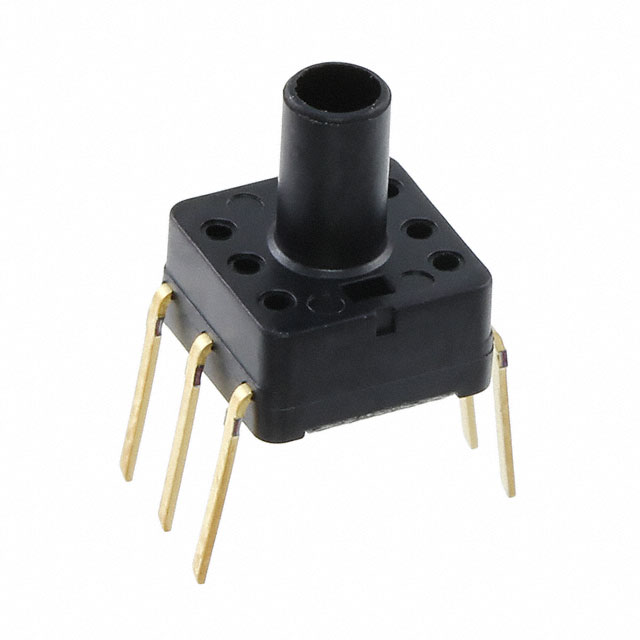

ADP5101

Panasonic Industrial Automation Sales

SENSOR 14.5PSIG 0.12" 4.5V

Search across all available documentation for this part.

Panasonic Industrial Automation Sales

SENSOR 14.5PSIG 0.12" 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	ADP5101

Accuracy	1.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	29.01 PSI
Maximum Pressure	200 kPa
Mounting Type	Through Hole
Operating Pressure	100 kPa
Operating Pressure	14.5 PSI
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output [Max]	4.5 V
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	6-DIP Module
Port Size	Male - Tube
Port Size	3 mm, 0.12 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	PC Pin

Part	Output Type	Accuracy	Features	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Port Size	Port Size	Maximum Pressure	Maximum Pressure	Package / Case	Termination Style	Pressure Type	Operating Pressure	Operating Pressure	Output [Max]	Output [Min]	Port Style
Panasonic Industrial Automation Sales ADP5101	Analog Voltage	1.25 %	Amplified Output Temperature Compensated	Board Mount	Through Hole	-10 °C	60 °C	Male - Tube	0.12 " 3 mm	29.01 PSI	200 kPa	6-DIP Module	PC Pin	Vented Gauge	100 kPa	14.5 PSI	4.5 V	0 mV	Barbless
Panasonic Industrial Automation Sales ADP5100	Analog Voltage	1.25 %	Amplified Output Temperature Compensated	Board Mount	Through Hole	-10 °C	60 °C	Male - Tube	0.12 " 3 mm	29.01 PSI	200 kPa	6-DIP Module	PC Pin	Compound	100 kPa	14.5 PSI	4.5 V	0 mV	Barbless

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±14.5PSI (±100kPa) Vented Gauge Male - 0.12" (3mm) Tube 0 V ~ 4.5 V 6-DIP Module
