1-1241150-2
ActiveTE Connectivity AMP Connectors

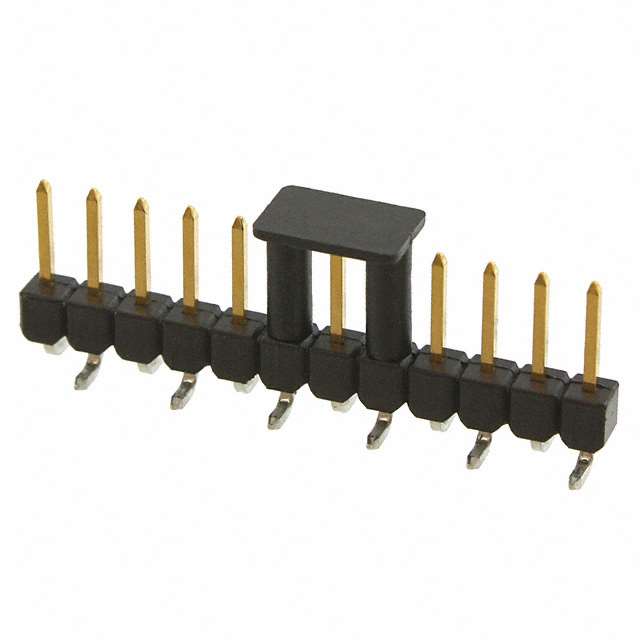

CONN HEADER SMD 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1241150-2
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1241150-2 | 1241150 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Mating | 0.228 in | 0.228 in |
| Contact Length - Mating | 5.8 mm | 5.8 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Pick and Place | Pick and Place |
| Insulation Color | Black | Black |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 12 | 6 - 12 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.49 | |
| 10 | $ 4.81 | |||
| 100 | $ 4.31 | |||
| Tape & Reel (TR) | 375 | $ 3.12 | ||
1241150 Series
CONN HEADER SMD 6POS 2.54MM
| Part | Style | Shrouding | Insulation Material | Mounting Type | Termination | Number of Rows | Number of Positions | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Finish - Post | Number of Positions Loaded | Contact Shape | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Length - Mating | Contact Length - Mating | Features | Contact Material | Contact Finish Thickness - Mating | Insulation Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241150-6 | Board to Board, Cable | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | Surface Mount | Solder | 1 | 6 | Male Pin | 3 µm | 118.1 µin | Gold or Gold-Palladium | Tin | All | Square | 0.1 in | 2.54 mm | Push-Pull | 0.228 in | 5.8 mm | Pick and Place | Brass | Flash | Black | Breakaway, Header |
TE Connectivity AMP Connectors 1241150-5 | Board to Board, Cable | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | Surface Mount | Solder | 1 | Male Pin | 3 µm | 118.1 µin | Gold or Gold-Palladium | Tin | All | Square | 0.1 in | 2.54 mm | Push-Pull | 0.228 in | 5.8 mm | Pick and Place | Brass | Flash | Black | Breakaway, Header | |
TE Connectivity AMP Connectors 1-1241150-2 | Board to Board, Cable | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | Surface Mount | Solder | 1 | 12 | Male Pin | 3 µm | 118.1 µin | Gold or Gold-Palladium | Tin | All | Square | 0.1 in | 2.54 mm | Push-Pull | 0.228 in | 5.8 mm | Pick and Place | Brass | Flash | Black | Breakaway, Header |
Description
General part information
1241150 Series
Connector Header Surface Mount 12 position 0.100" (2.54mm)
