26503.6

Active

Conta-Clip, Inc.

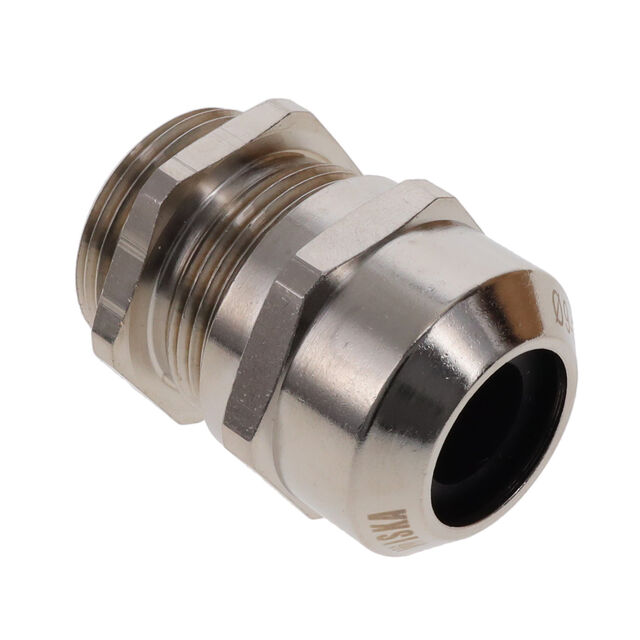

CABLE GLAND 7.11-11.94MM M25

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

CABLE GLAND 7.11-11.94MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	26503.6

Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Outside Cable Diameter (Max) [Max]	11.94 mm
Outside Cable Diameter (Max) [Max]	0.47 "
Outside Cable Diameter (Min) [Min] [diameter]	0.28 in
Outside Cable Diameter (Min) [Min] [diameter]	7.11 mm
Panel Hole Size	24.9 mm
Panel Hole Size	0.98 in
Thread Size	M25x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Type	Thread Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Panel Hole Size	Panel Hole Size	Ingress Protection
Conta-Clip, Inc. 26503.6	0.28 in	7.11 mm	Silver	Cable Gland	M25x1.5	11.94 mm	0.47 "	Brass Nickel Plated	24.9 mm	0.98 in	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M25x1.5 Silver
