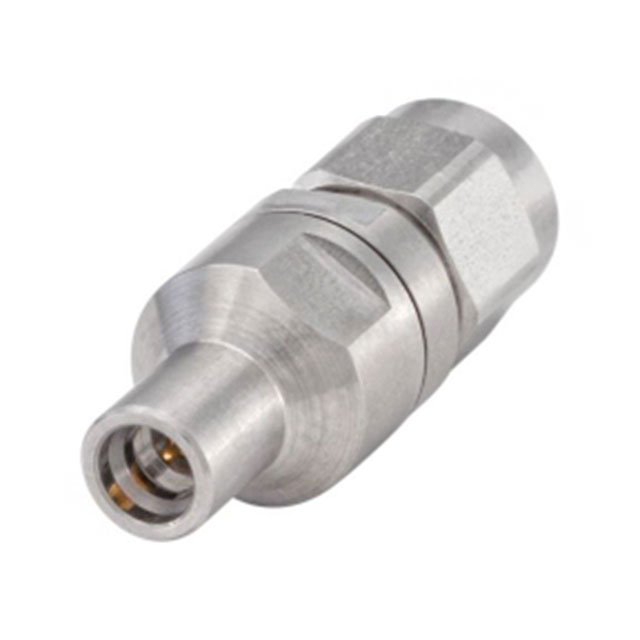

Specification	19S132-S00S3

Adapter Series	SMA to SMP
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male
Conversion Type	Between Series
Convert From (Adapter End)	Male Pin, SMA Plug
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	SMP Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max	26.5 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-65 °C
Style	Straight

19S132 Series

Part	Impedance	Adapter Series	Frequency - Max	Mounting Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Conversion Type	Style	Center Contact Plating	Fastening Type	Center Gender	Adapter Type	Convert From (Adapter End)	Mating Cycles	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Center Contact Material	Body Material
Rosenberger 19S132-S00S3	50 Ohm	SMA to SMP	26.5 GHz	Free Hanging (In-Line)	SMP Plug	Male Pin	Between Series	Straight	Gold	Snap-On Threaded	Male	Plug to Plug	Male Pin SMA Plug	500 cycles	155 °C	-65 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Stainless Steel
