8770ZH 060500

Active

Belden Inc.

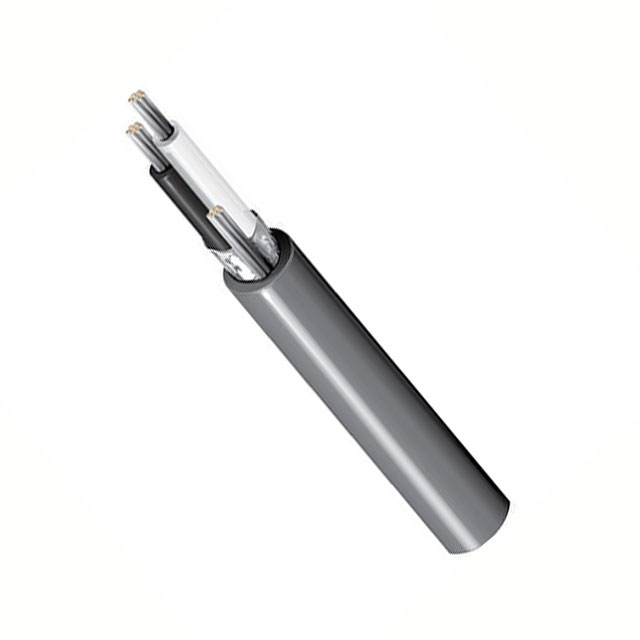

CABLE 3CON 18AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 18AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	8770ZH 060500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.246 in
Jacket (Insulation) Diameter [diameter]	6.25 mm
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket Color	Number of Conductors	Shield Material	Usage	Shield Coverage	Length [x]	Length [x]	Conductor Material	Cable Type	Features
Belden Inc. 8770ZH 060500	Polyethylene (PE)	0.246 in	6.25 mm	Foil	16	30 AWG	300 V	0.838 mm	0.033 in	18 AWG	Chrome	3	Aluminum	Audio Control Instrumentation	100 %	500 '	152.4 m	Copper Tinned	Multi-Conductor	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.46

General part information

3 Conductor Multi-Conductor Cable Chrome 18 AWG Foil 500.0' (152.4m)
