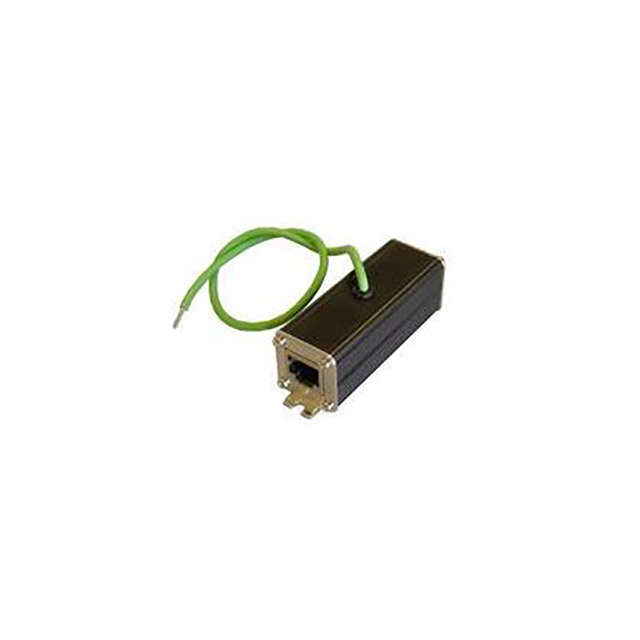

TP-ESP-1000-POE

Active

Tycon Systems Inc.

NETWORK LIGHTNING/SURGE PROTECTO

Search across all available documentation for this part.

Active

Tycon Systems Inc.

NETWORK LIGHTNING/SURGE PROTECTO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP-ESP-1000-POE	TP-ESP Series

AC Outlets	None	None
Approval Agency	UL497B	CSA 22.2, FCC, UL 1950, TUV EN60950, UL497B
Current - Max	-	2.5 A
Features	Ground	Ground
Housing Material	Metal	Plastic, Metal
Media Lines Protected	RJ45	RJ45
Mounting Type	Chassis Mount	Wall Mount, Chassis Mount
Overload Protection	None	None
Region Utilized	International	International
Type	Surge Protector for Media Lines Only	Surge Protector for Media Lines Only
Voltage - Input	-	48 VDC

OUTDOOR WEATHERPROOF ISOLATED SU

Part	Voltage - Input	Media Lines Protected	Region Utilized	Overload Protection	Type	AC Outlets	Approval Agency	Mounting Type	Housing Material	Features	Current - Max [Max]
Tycon Systems Inc. TP-ESP-71G	48 VDC	RJ45	International	None	Surge Protector for Media Lines Only	None	CSA 22.2, FCC, TUV EN60950, UL 1950	Wall Mount	Plastic
Tycon Systems Inc. TP-ESP-1000-POE		RJ45	International	None	Surge Protector for Media Lines Only	None	UL497B	Chassis Mount	Metal	Ground
Tycon Systems Inc. TP-ESP-1000-POE24		RJ45	International		Surge Protector for Media Lines Only			Chassis Mount	Metal	Ground
Tycon Systems Inc. TP-ESP-10G-POE		RJ45	International	None	Surge Protector for Media Lines Only	None	UL497B	Chassis Mount	Metal	Ground	2.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NETWORK LIGHTNING/SURGE PROTECTO

Technical documentation and resources
