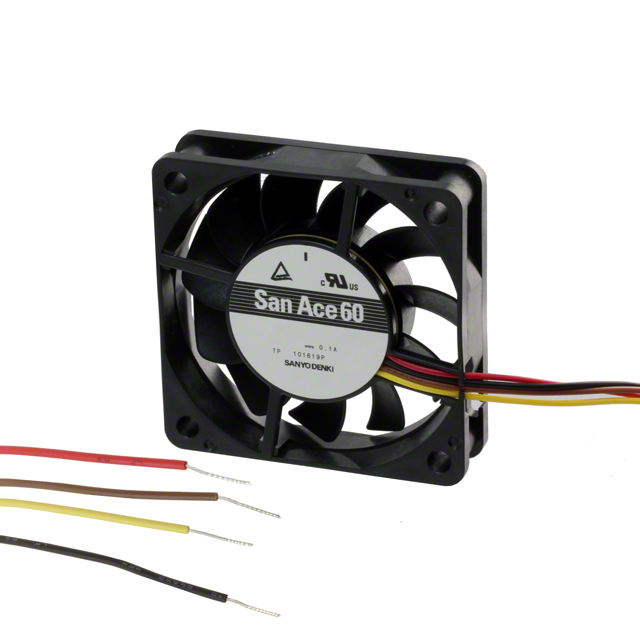

Specification	9GA0612P1H03

Air Flow	40.6 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.55 A
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach)
Lifetime	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	52 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	6.6 W
RPM	11500 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	1.504 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.2 VDC
Voltage Range (Min)	10.8 VDC
Weight	0.287 lb
Width	38 mm

9GA0612 Series

Part	Air Flow	Power (Watts)	Termination Leads Count	Termination Type	Termination	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	RPM	Approval Agency	Fan Type	Weight	Width	Features	Voltage - Rated	Operating Temperature (Min)	Operating Temperature (Max)	Static Pressure	Bearing Type	Noise	Material - Blade	Lifetime	Material - Frame	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Lifetime
Sanyo Denki America Inc. 9GA0612K1021	53 CFM	11.4 W	2 leads	Wire Leads	2 Wire Leads	60 mm	Square	60 mm	14800 RPM	CSA TUV UL	Tubeaxial	0.287 lb	38 mm	Locked Rotor Protection	12 VAC	-4 °F	158 °F	2.4 in H2O	Ball	59 dB	Plastic	Varies Based on Temperature	Plastic	0.95 A	10.8 VDC	13.2 VDC
Sanyo Denki America Inc. 9GA0612G9D001	21.9 CFM	3.24 W	3	Wire Leads	3 Wire Leads	60 mm	Square	60 mm	6200 RPM	CSA TUV UL	Tubeaxial	0.078 lb	10 mm	Locked Rotor Sensor	12 VAC	-20 °C	60 °C	0.26 in H2O	Ball	43 dB	Plastic	Varies Based on Temperature	Plastic	270 mA	7 V	13.2 VDC
Sanyo Denki America Inc. 9GA0612K1011	53 CFM	11.4 W	3	Wire Leads	3 Wire Leads	60 mm	Square	60 mm	14800 RPM	CSA TUV UL	Tubeaxial	0.287 lb	38 mm	Locked Rotor Protection Speed Sensor (Tach)	12 VAC	-4 °F	158 °F	2.4 in H2O	Ball	59 dB	Plastic	Varies Based on Temperature	Plastic	0.95 A	10.8 VDC	13.2 VDC
Sanyo Denki America Inc. 9GA0612L702	10.9 CFM	0.36 W	2 leads	Wire Leads	2 Wire Leads	60 mm	Square	60 mm	2800 RPM	CSA TUV UL	Tubeaxial	0.111 lb	15 mm	Locked Rotor Protection	12 VAC	-4 °F	158 °F	0.072 in H2O	Ball	17 dB	Plastic		Plastic	30 mA	6 VDC	13.8 VDC	60000 Hrs
Sanyo Denki America Inc. 9GA0612P6S001	24.7 CFM	1.8 W	4 leads	Wire Leads	4 Wire Leads	60 mm	Square	60 mm	5500 RPM	CSA TUV UL	Tubeaxial	0.154 lb	20 mm	PWM Control Speed Sensor (Tach)	12 VAC	14 °F	158 °F	0.326 in H2O	Ball	36 dB	Plastic		Plastic	150 mA	10.8 VDC	13.2 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0612H7D01	19.7 CFM	1.2 W	3	Wire Leads	3 Wire Leads	60 mm	Square	60 mm	4900 RPM	CSA TUV UL	Tubeaxial	0.111 lb	15 mm	Locked Rotor Sensor	12 VAC	-4 °F	158 °F	0.223 in H2O	Ball	34 dB	Plastic	Varies Based on Temperature	Plastic	100 mA	6 VDC	13.8 VDC
Sanyo Denki America Inc. 9GA0612M6D001	12 CFM	600 mW	3	Wire Leads	3 Wire Leads	60 mm	Square	60 mm	2700 RPM	CSA TUV UL	Tubeaxial	0.156 lb	20 mm	Locked Rotor Sensor	12 VAC	-4 °F	158 °F	0.08 in H2O	Ball	18 dB	Plastic		Plastic	50 mA	10.8 VDC	13.2 VDC	60000 Hrs
Sanyo Denki America Inc. 9GA0612P1H03	40.6 CFM	6.6 W	4 leads	Wire Leads	4 Wire Leads	60 mm	Square	60 mm	11500 RPM	CSA TUV UL	Tubeaxial	0.287 lb	38 mm	PWM Control Speed Sensor (Tach)	12 VAC	-4 °F	158 °F	1.504 in H2O	Ball	52 dB	Plastic		Plastic	0.55 A	10.8 VDC	13.2 VDC	40000 Hrs
Sanyo Denki America Inc. 9GA0612H9002	17.6 CFM	1.68 W	2 leads	Wire Leads	2 Wire Leads	60 mm	Square	60 mm	5000 RPM	CSA TUV UL	Tubeaxial	0.078 lb	10 mm	Locked Rotor Protection	12 VAC	-4 °F	158 °F	0.17 in H2O	Ball	37 dB	Plastic	Varies Based on Temperature	Plastic	140 mA	7 V	13.8 VDC
Sanyo Denki America Inc. 9GA0612J1021	62 CFM	18 W	2 leads	Wire Leads	2 Wire Leads	60 mm	Square	60 mm	17500 RPM	CSA TUV UL	Tubeaxial	0.287 lb	38 mm	Locked Rotor Protection	12 VAC	-20 °C	60 °C	3.3 in H2O	Ball	63 dB	Plastic	Varies Based on Temperature	Plastic	1.5 A	10.8 VDC	12.6 VDC
