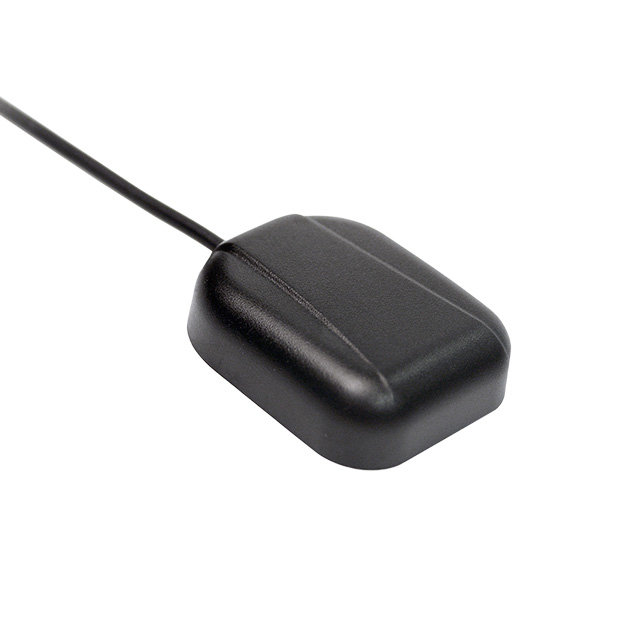

ANT-GPS-SH2-SMA
ObsoleteTE Connectivity Linx
RF ANT 1.575GHZ/1.602GHZ MOD 3M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-GPS-SH2-SMA
ObsoleteTE Connectivity Linx
RF ANT 1.575GHZ/1.602GHZ MOD 3M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GPS-SH2-SMA |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Features | Cable - 3m, LNA |
| Frequency (Center/Band) | 1.575 GHz, 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.607 GHz, 1.58 GHz |
| Frequency Range [Min] | 1.57 GHz, 1.597 GHz |
| Gain | 5 dBi |
| Height (Max) | 12.5 mm |
| Height (Max) [Max] | 0.492 in |
| Mounting Type | Magnetic |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ANT-GPS Series
RF ANTENNA GPS Module SMA Male Magnetic
