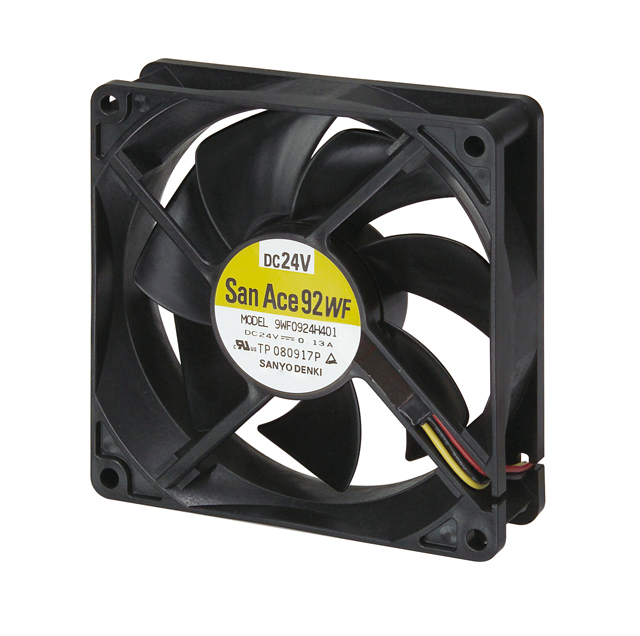

9WF0924H401

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System Oil Proof Fan +1

9WF0924H401

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System Oil Proof Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WF0924H401

Air Flow	51.2 CFM
Air Flow	1.43 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Ingress Protection	Oil Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	42.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.12 W
RPM	3900 RPM
Static Pressure	0.26 in H2O
Static Pressure	64.8 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	119.75 g
Weight	0.264 lb
Width [y]	25 mm

9WF0924 Series

Part	Material - Blade	Termination	Lifetime @ Temp.	Approval Agency	Fan Type	Noise	Material - Frame	Weight	Weight	Bearing Type	Air Flow	Air Flow	Ingress Protection	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Rated	RPM	Width [y]	Features	Static Pressure	Static Pressure	Air Flow
Sanyo Denki America Inc. 9WF0924H202	Plastic	2 Wire Leads	40000 Hrs	CSA TUV UL	Tubeaxial	56 dB	Plastic	0.408 lb	185.07 g	Ball	86.5 CFM	2.42 m³/min	Oil Resistant	0.35 A	-20 °C	70 °C	-20 C	70 °C	8.4 W	24 VDC	6500 RPM	32 mm
Sanyo Denki America Inc. 9WF0924H401	Plastic	3 Wire Leads	40000 Hrs	CSA TUV UL	Tubeaxial	42.5 dB(A)	Plastic	0.264 lb	119.75 g	Ball	51.2 CFM	1.43 mł/min	Oil Resistant		-20 °C	70 °C	-20 C	70 °C	3.12 W	24 VDC	3900 RPM	25 mm	Speed Sensor (Tach)	0.26 in H2O	64.8 Pa
Sanyo Denki America Inc. 9WF0924S202	Plastic	2 Wire Leads	40000 Hrs	CSA TUV UL	Tubeaxial	58 dB(A)	Plastic	0.408 lb	185.07 g	Ball	98.9 CFM	2.78 m³/min	Oil Resistant	0.5 A	-20 °C	70 °C	-20 C	70 °C	12 W	24 VDC	7300 RPM	32 mm		1.02 in H2O	255 Pa
Sanyo Denki America Inc. 9WF0924H402	Plastic	2 Wire Leads	40000 Hrs	CSA TUV UL	Tubeaxial	42.5 dB(A)	Plastic	0.265 lb	120.2 g	Ball		51.2 CFM	Oil Resistant		-20 °C	70 °C	-20 C	70 °C	3.12 W	24 VDC	3900 RPM	25 mm		0.26 in H2O	64.8 Pa	1.43 m³/min
Sanyo Denki America Inc. 9WF0924H4011	Plastic	3 Wire Leads	40000 Hrs	CSA TUV UL	Tubeaxial	42.5 dB(A)	Plastic	0.265 lb	120.2 g	Ball		51.2 CFM	Oil Resistant		-20 °C	70 °C	-20 C	70 °C	3.12 W	24 VDC	3900 RPM	25 mm	Speed Sensor (Tach)	0.26 in H2O	64.8 Pa	1.43 m³/min
Sanyo Denki America Inc. 9WF0924S2011	Plastic	3 Wire Leads	40000 Hrs	CSA TUV UL	Tubeaxial	58 dB(A)	Plastic	0.408 lb	185.07 g	Ball	98.9 CFM	2.78 m³/min	Oil Resistant	0.5 A	-20 °C	70 °C	-20 C	70 °C	12 W	24 VDC	7300 RPM	32 mm	Speed Sensor (Tach)	1.02 in H2O	255 Pa
Sanyo Denki America Inc. 9WF0924H4D01	Plastic	3 Wire Leads	40000 Hrs	CSA TUV UL	Tubeaxial	42.5 dB(A)	Plastic	0.265 lb	120.2 g	Ball		51.2 CFM	Oil Resistant		-20 °C	70 °C	-20 C	70 °C	3.12 W	24 VDC	3900 RPM	25 mm	Locked Rotor Sensor	0.26 in H2O	64.8 Pa	1.43 m³/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.01
		10	$ 30.15
		28	$ 29.00
		56	$ 27.09
		112	$ 24.99
		252	$ 24.61

Description

General part information

9WF0924 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 51.2 CFM (1.43mł/min) 3 Wire Leads
