1766754

Active

Phoenix Contact

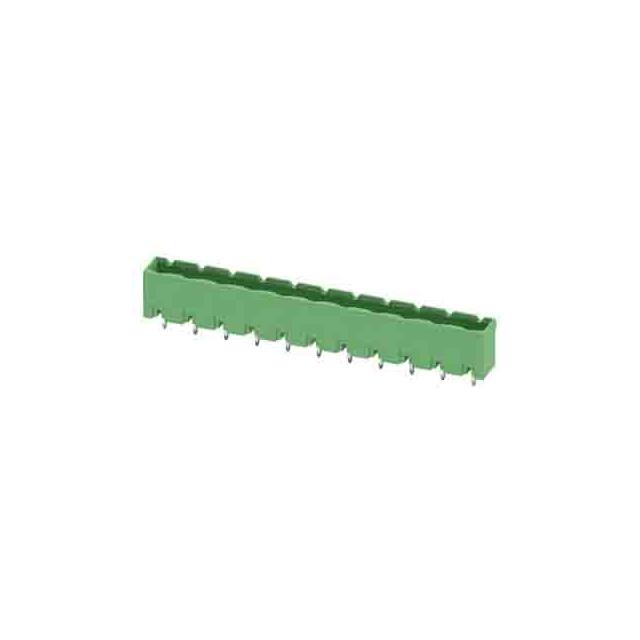

PLUGGABLE TERMINAL BLOCKS 11 POS 7.5MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 11 POS 7.5MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	1766754

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	0.154 "
Contact Tail Length	3.9 mm
Current - IEC	12 A
Header Orientation	Vertical
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	11
Pitch [x]	0.295 in
Pitch [x]	7.5 mm
Positions Per Level	11
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	630 V
Voltage - UL	300 V

Pluggable Terminal Blocks 11 Pos 7.5mm pitch Through Hole Header

Part	Number of Levels	Header Orientation	Voltage - IEC	Pitch [x]	Pitch [x]	Housing Material	Positions Per Level	Number of Positions	Contact Mating Finish	Current - IEC	Termination Style	Voltage - UL	Mounting Type	Insulation Height	Insulation Height	Color	Contact Tail Length	Contact Tail Length	Type	Material Flammability Rating
Phoenix Contact 1766754	1	Vertical	630 V	0.295 in	7.5 mm	Polyamide (PA), Nylon	11	11	Tin	12 A	Solder	300 V	Through Hole	0.472 in	12 mm	Green	0.154 "	3.9 mm	Header, Male Pins, Shrouded (4 Side)	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 11 Pos 7.5mm pitch Through Hole Header
