FP150R12KT4B11BPSA1

Active

Infineon Technologies

THE FP150R12KT4_B11 IS A PIM THREE PHASE INPUT RECTIFIER IGBT4 - T4 MODULE IN A ECONOPIM™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 150 A.

Deep-Dive with AI

Search across all available documentation for this part.

FP150R12KT4B11BPSA1

Active

Infineon Technologies

THE FP150R12KT4_B11 IS A PIM THREE PHASE INPUT RECTIFIER IGBT4 - T4 MODULE IN A ECONOPIM™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 150 A.

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP150R12KT4B11BPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	150 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	9.35 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FP150R12 Series

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	IGBT Type	Supplier Device Package	Configuration	Current - Collector Cutoff (Max) [Max]	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Input	Power - Max [Max]
Infineon Technologies FP150R12N3T4PB81BPSA1
Infineon Technologies FP150R12KT4B11BPSA1	1200 V	Chassis Mount	150 °C	-40 °C	Module	Trench Field Stop	Module	Three Phase Inverter	1 mA	9.35 nF	150 A	2.1 V	Three Phase Bridge Rectifier
Infineon Technologies FP150R12N3T7BPSA1	1200 V	Chassis Mount	175 °C	-40 C	Module	Trench Field Stop	AG-ECONO3	Three Phase Inverter	12 µA	30.1 nF	150 A	1.55 V	Three Phase Bridge Rectifier	20 mW
Infineon Technologies FP150R12KT4PB11BPSA1	1200 V	Chassis Mount	150 °C	-40 °C	Module	Trench Field Stop	Module	Three Phase Inverter	1 mA	9.35 nF	150 A	2.1 V	Three Phase Bridge Rectifier
Infineon Technologies FP150R12KT4BPSA1	1200 V	Chassis Mount	150 °C	-40 °C	Module	Trench Field Stop	Module	Three Phase Inverter	1 mA	9.35 nF	150 A	2.1 V	Three Phase Bridge Rectifier

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 180.81

Description

General part information

FP150R12 Series

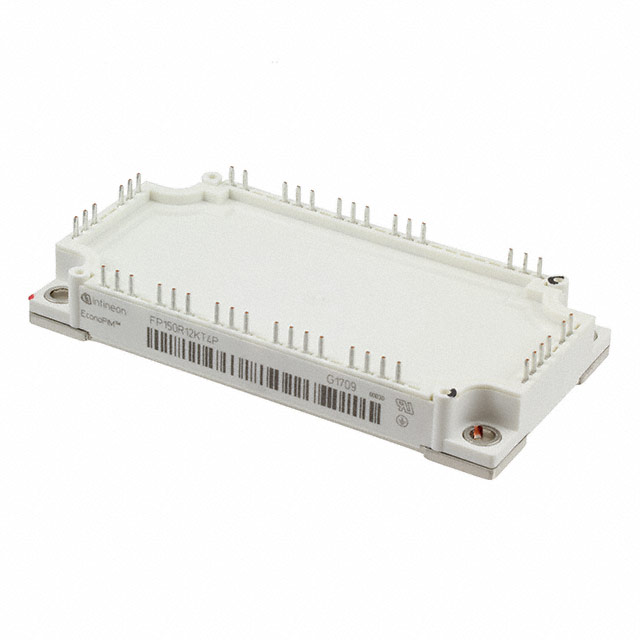

EconoPIM™31200 V, 150 A three-phaseIGBT modulewith fast Trench/Fieldstop IGBT4, Emitter Controlled Diode, NTC andPressFIT Contact Technology. Also available withpre-applied Thermal Interface Material.
