54.1-ND-10

Active

J.W. Winco

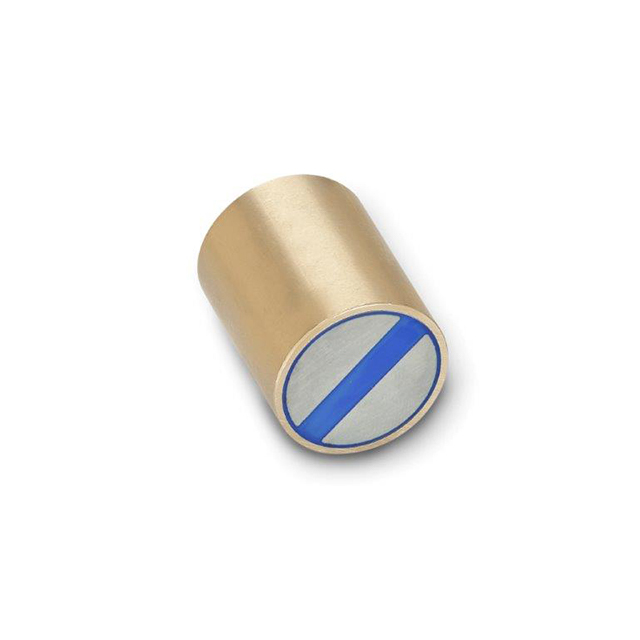

MAGNET 0.394"D X 0.787"THICK CYL

Search across all available documentation for this part.

Active

J.W. Winco

MAGNET 0.394"D X 0.787"THICK CYL

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature	Material	Shape	Size [z]	Size [z]	Size [diameter]	Size [diameter]	Finish
J.W. Winco 54.1-ND-13	80 °C	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	13 mm	0.512 in	Brass
J.W. Winco 54.1-ND-10	80 °C	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	10 mm	0.394 in	Brass
J.W. Winco 54.1-ND-6	80 °C	Neodymium Iron Boron (NdFeB)	Cylindrical					Brass
J.W. Winco 54.1-ND-16	80 °C	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	16 mm	0.63 in	Brass
J.W. Winco 54.1-ND-8	80 °C	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	8 mm	0.315 "	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.09

General part information

Magnet Neodymium Iron Boron (NdFeB) 0.394" Dia x 0.787" H (10.00mm x 20.00mm)
