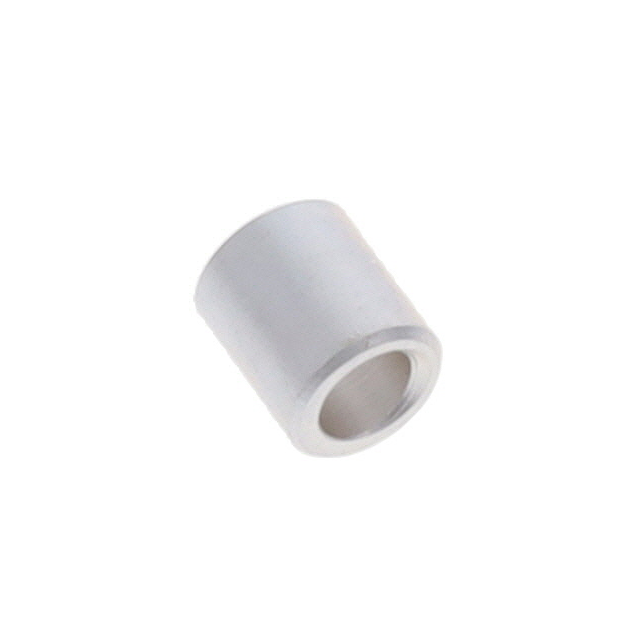

M0504-25-AL-7
ActiveRAF Electronic Hardware
4.5MM RD X 5MM X 2.7MM ID
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M0504-25-AL-7
ActiveRAF Electronic Hardware
4.5MM RD X 5MM X 2.7MM ID
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0504-25-AL-7 |
|---|---|
| Between Board Height | 0.197 in |
| Between Board Height | 5 mm |
| Color | Clear |
| Diameter - Inside [diameter] | 2.7 mm |
| Diameter - Inside [diameter] | 0.106 in |
| Diameter - Outside [diameter] | 4.5 mm |
| Diameter - Outside [diameter] | 0.177 in |
| Gender | Female |
| Length - Overall [x] | 5 mm |
| Length - Overall [x] | 0.197 " |
| Material | Aluminum |
| Plating | Iridite |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 5 | $ 1.20 | |||
| 10 | $ 1.11 | |||
| 25 | $ 1.02 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.76 | |||
Description
General part information
M0504 Series
Round Spacer Unthreaded M2.5 Aluminum 0.197" (5.00mm) Clear
