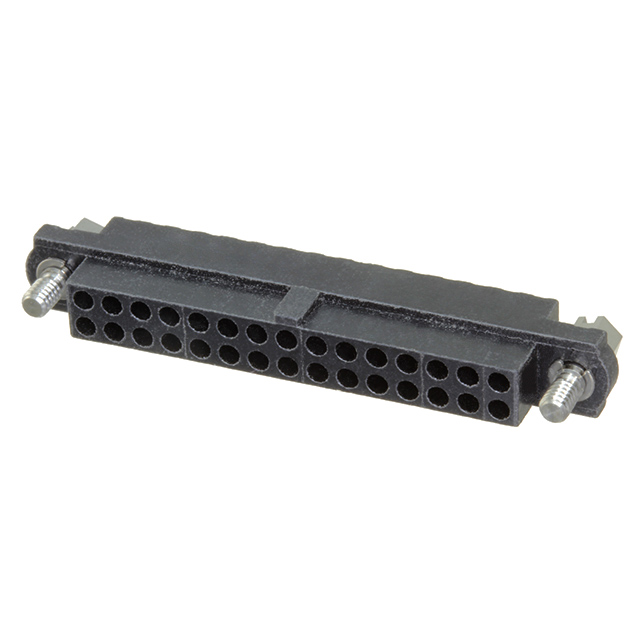

M80-4143098

Active

Harwin Inc.

15+15 POS. FEMALE DIL CABLE HOUSING, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80, M83 Series Spec Sheet +3

M80-4143098

Active

Harwin Inc.

15+15 POS. FEMALE DIL CABLE HOUSING, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80, M83 Series Spec Sheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4143098

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Mating Flange, Polarizing Key
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

M80-414 Series

Part	Note	Number of Positions	Color	Contact Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Row Spacing	Row Spacing	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Termination
Harwin Inc. M80-4143098	Contacts Not Included	30	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4141498	Contacts Not Included	14	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4143698	Contacts Not Included	36	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4141898	Contacts Not Included	18	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4142098	Contacts Not Included	20	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4144498	Contacts Not Included	44	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4140698	Contacts Not Included	6	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4142698	Contacts Not Included	26	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4141098	Contacts Not Included	10	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp
Harwin Inc. M80-4144098	Contacts Not Included	40	Black	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Free Hanging (In-Line)	Receptacle	2 mm	0.079 in	2	Mating Flange Polarizing Key	0.079 in	2 mm	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.91
		10	$ 6.24
		25	$ 5.90
		50	$ 5.75
		100	$ 5.47
		250	$ 4.89
		500	$ 4.60
		1000	$ 4.03
		2500	$ 3.83
Newark	Each	50	$ 6.41
		100	$ 5.99
		250	$ 5.53
		500	$ 5.10
		1000	$ 4.68
		2500	$ 4.22
