Q-1U02C0003003i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO PLUG 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U02C0003003i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO PLUG 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U02C0003003i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1U02C0 Series

Part	Color	1st Connector Mounting Type	Overall Impedance	1st Contact Gender	Style	1st Connector Mounting Feature	Cable Type	Features	2nd Connector Mounting Type	2nd Contact Gender	Frequency - Max [Max]	Length	Length	Length	2nd Connector	1st Connector
Amphenol Custom Cable Q-1U02C0003072i	Black	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-174	Shielded	Free Hanging (In-Line)	Male	11 GHz	6 ft	72 in	1.8 m	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C00051.5M	Copper	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-316	Shielded	Free Hanging (In-Line)	Male	11 GHz	4.9 ft	59.1 in	1.5 m	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C0003060i	Black	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-174	Shielded	Free Hanging (In-Line)	Male	11 GHz	5 ft	5 '	1.5 m	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C0003048i	Black	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-174	Shielded	Free Hanging (In-Line)	Male	11 GHz	4 ft	48 in	1200 mm	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C0005009i	Copper	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-316	Shielded	Free Hanging (In-Line)	Male	11 GHz		9 "	228.6 mm	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C0003108i	Black	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-174	Shielded	Free Hanging (In-Line)	Male	11 GHz	9 ft	108 in	2.7 m	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C0005108i	Copper	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-316	Shielded	Free Hanging (In-Line)	Male	11 GHz	9 ft	108 in	2.7 m	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C0005024i	Copper	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-316	Shielded	Free Hanging (In-Line)	Male	11 GHz		24 "	609.6 mm	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C0005.75M	Copper	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-316	Shielded	Free Hanging (In-Line)	Male	11 GHz		29.53 "	750 mm	N-Type Plug Right Angle	N-Type Jack
Amphenol Custom Cable Q-1U02C0003003i	Black	Panel Mount	50 Ohms	Female	N-Type to N-Type	Bulkhead - Front Side Nut	RG-174	Shielded	Free Hanging (In-Line)	Male	11 GHz		3 in	76.2 mm	N-Type Plug Right Angle	N-Type Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 112.07
		25	$ 109.95
		50	$ 107.83
		100	$ 105.71
		250	$ 103.59

Description

General part information

Q-1U02C0 Series

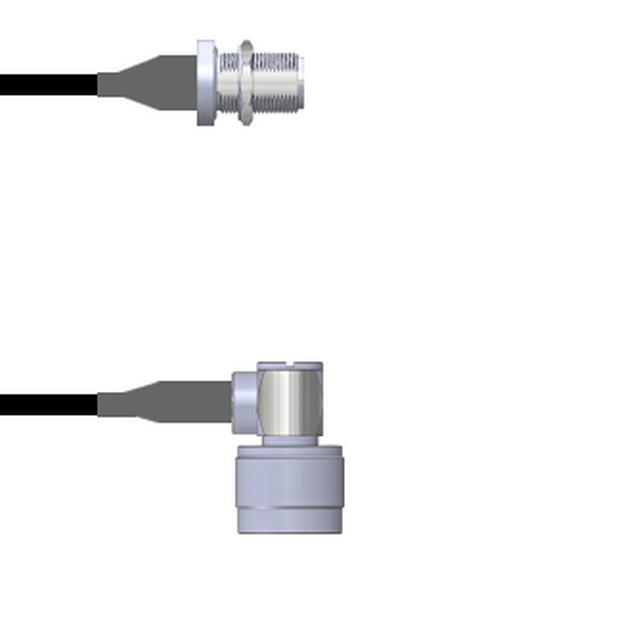

Cable Assembly Coaxial N-Type to N-Type RG-174 3.000" (76.20mm)
