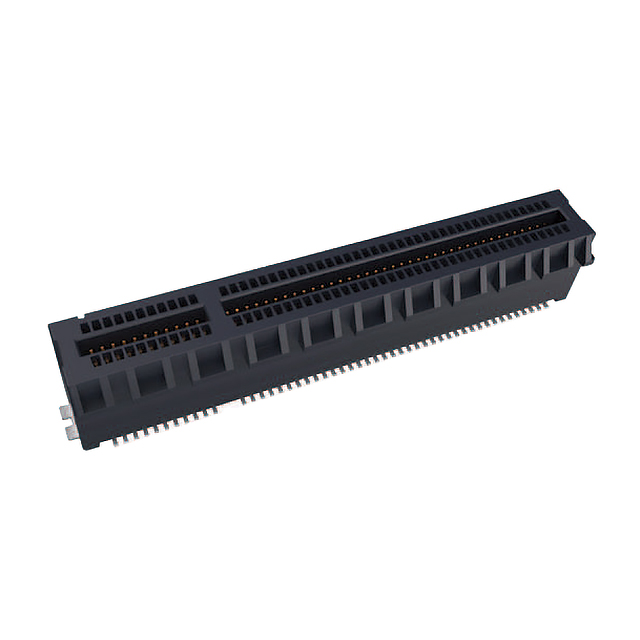

Specification	10128241-112Y0LF

Card Thickness	0.062 in
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Features	Locking Ramp, Board Guide
Gender	Female
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Surface Mount
Number of Positions	98
Number of Rows	2
Pitch	0.039 in
Read Out	Dual
Termination	Solder

10128241 Series

Part	Number of Rows	Features	Gender	Color	Read Out	Contact Finish Thickness	Material - Insulation	Pitch	Termination	Contact Finish	Card Thickness	Mounting Type	Number of Positions	Contact Material	Card Type
Amphenol ICC (FCI) 10128241-113X0LF	2	Board Guide Locking Ramp	Female	Black	Dual	30 µin	Nylon PA Polyamide	0.039 in	Solder	Gold	0.062 in	Surface Mount	164	Copper Alloy	PCI Express™
Amphenol ICC (FCI) 10128241-112Y0LF	2	Board Guide Locking Ramp	Female	Black	Dual	30 µin	Nylon PA Polyamide	0.039 in	Solder	Gold	0.062 in	Surface Mount	98	Copper Alloy	PCI Express™
Amphenol ICC (FCI) 10128241-110T0LF	2	Board Guide Locking Ramp	Female	Black	Dual	30 µin	Nylon PA Polyamide	0.039 in	Solder	Gold	0.062 in	Surface Mount	36	Copper Alloy	PCI Express™
Amphenol ICC (FCI) 10128241-113A0LF	2	Board Guide Locking Ramp	Female	Black	Dual	30 µin	Nylon PA Polyamide	0.039 in	Solder	Gold	0.062 in	Surface Mount	164	Copper Alloy	PCI Express™
Amphenol ICC (FCI) 10128241-111T0LF	2	Board Guide Locking Ramp	Female	Black	Dual	30 µin	Nylon PA Polyamide	0.039 in	Solder	Gold	0.062 in	Surface Mount	64	Copper Alloy	PCI Express™
Amphenol ICC (FCI) 10128241-122X0LF	2	Board Guide Locking Ramp	Female	Black	Dual	15 µin	Nylon PA Polyamide	0.039 in	Solder	Gold	0.062 in	Surface Mount	98	Copper Alloy	PCI Express™
Amphenol ICC (FCI) 10128241-110C0LF	2	Board Guide Locking Ramp	Female	Black	Dual	30 µin	Nylon PA Polyamide	0.039 in	Solder	Gold	0.062 in	Surface Mount	36	Copper Alloy	PCI Express™
Amphenol ICC (FCI) 10128241-123X0LF	2	Board Guide Locking Ramp	Female	Black	Dual	15 µin	Nylon PA Polyamide	0.039 in	Solder	Gold	0.062 in	Surface Mount	164	Copper Alloy	PCI Express™

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

10128241-112Y0LF | Datasheet
