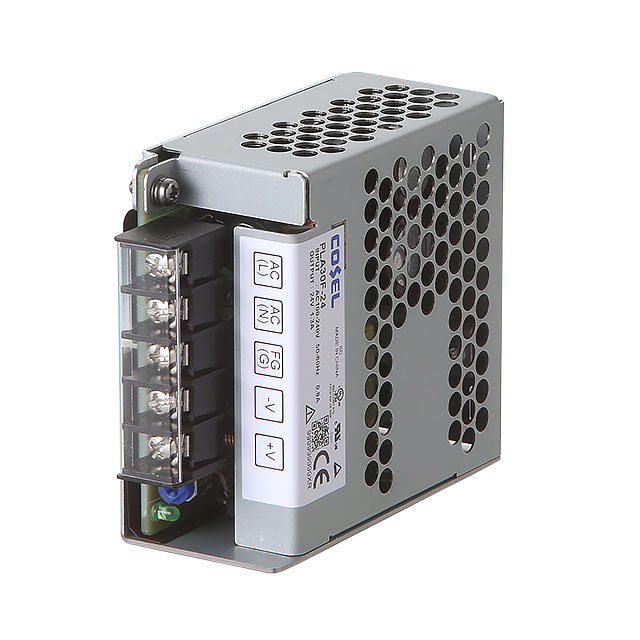

PLA30F-5
ActiveCosel USA, Inc.
AC/DC CONVERTER 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLA30F-5
ActiveCosel USA, Inc.
AC/DC CONVERTER 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLA30F-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 6 A |
| Efficiency | 77 % |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 87.9 mm |
| Size / Dimension [x] | 3.46 " |
| Size / Dimension [y] | 1.5 in |
| Size / Dimension [y] | 38.1 mm |
| Size / Dimension [z] | 80 mm |
| Size / Dimension [z] | 3.15 " |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 30.01 | |
| 5 | $ 29.13 | |||
| 10 | $ 28.25 | |||
| 25 | $ 27.36 | |||
| 50 | $ 26.48 | |||
| 100 | $ 25.60 | |||
| 250 | $ 24.72 | |||
Description
General part information
PLA30F Series
Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
