Description

General part information

ISL8018 Series

The ISL8018 is a high efficiency, monolithic, synchronous step-down DC/DC converter that can deliver up to 8A continuous output current from a 2. 7V to 5. 5V input supply. The output voltage is adjustable from 0. 6V to VIN. With an adjustable current limit, reverse current protection, prebias start and over-temperature protection, the ISL8018 offers a highly robust power solution. It uses current control architecture to deliver fast transient response and excellent loop stability. The ISL8018 integrates a pair of low ON-resistance P-channel and N-channel internal MOSFETs to maximize efficiency and minimize external component count. 100% duty-cycle operation allows less than 250mV dropout at 8A output current. Adjustable frequency and synchronization allow the ISL8018 to be used in applications requiring low noise. The ISL8018 can be configured for discontinuous or forced continuous operation at light load. Forced continuous operation reduces noise and RF interference while discontinuous mode provides high efficiency by reducing switching losses at light loads. The ISL8018 is offered in a space saving 20 Ld 3x4 QFN lead free package with exposed pad lead frames for excellent thermal performance. The complete converter occupies less than 96. 8mm2area.

Technical Specifications

Parameters and characteristics for this part

Specification	ISL8018IRAJZ-T7A

Current - Output	8 A
Frequency - Switching (Max)	4 MHz
Frequency - Switching (Min)	500 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	20-VFQFN Exposed Pad
Package Length	3 mm
Package Name	20-QFN
Package Width	4 mm
Synchronous Rectifier	Yes
Topology	Buck
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	2.7 V
Voltage - Output (Max)	5.5 V
Voltage - Output (Min/Fixed)	0.6 V

ISL8018 Series

Part	Output Configuration	Voltage - Output (Min/Fixed)	Frequency - Switching (Min)	Frequency - Switching (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Number of Outputs	Package / Case	Current - Output	Topology	Voltage - Input (Min)	Voltage - Input (Max)	Package Length	Package Name	Package Width	Mounting Type	Voltage - Output (Max)	Function	Synchronous Rectifier	Output Type	Supplied Contents	Total Output Count	Non-Isolated Output Count	Board Type	Contents	Utilized IC / Part	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Regulator Topology	Main Purpose
Renesas Electronics Corporation ISL8018IRAJZ-T	Positive	0.6 V	500 kHz	4 MHz	85 °C	-40 °C	1	20-VFQFN Exposed Pad	8 A	Buck	2.7 V	5.5 V	3 mm	20-QFN	4 mm	Surface Mount	5.5 V	Step-Down	Yes	Adjustable
Renesas Electronics Corporation ISL8018IRAJZ	Positive	0.6 V	500 kHz	4 MHz	85 °C	-40 °C	1	20-VFQFN Exposed Pad	8 A	Buck	2.7 V	5.5 V	3 mm	20-QFN	4 mm	Surface Mount	5.5 V	Step-Down	Yes	Adjustable

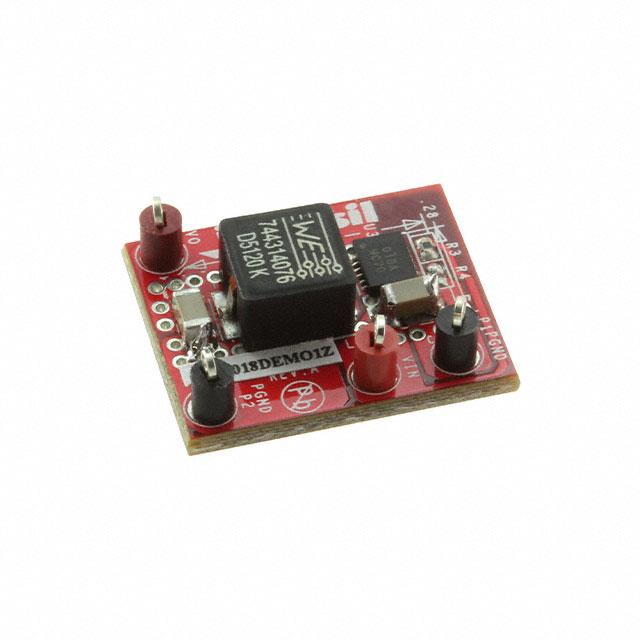

Renesas Electronics Corporation ISL8018DEMO1Z									8 A											Non-Isolated	Board(s)	1	1 count	Fully Populated	Board	ISL8018	2.7 V	5.5 V	Buck	DC/DC Step Down
Renesas Electronics Corporation ISL8018IRAJZ-T7A	Positive	0.6 V	500 kHz	4 MHz	85 °C	-40 °C	1	20-VFQFN Exposed Pad	8 A	Buck	2.7 V	5.5 V	3 mm	20-QFN	4 mm	Surface Mount	5.5 V	Step-Down	Yes	Adjustable
Renesas Electronics Corporation ISL8018IRAJZ-TS2490	Positive	0.6 V	500 kHz	4 MHz	85 °C	-40 °C	1	20-VFQFN Exposed Pad	8 A	Buck	2.7 V	5.5 V	3 mm	20-QFN	4 mm	Surface Mount	5.5 V	Step-Down	Yes	Adjustable
