87270-2

Active

TE Connectivity AMP Connectors

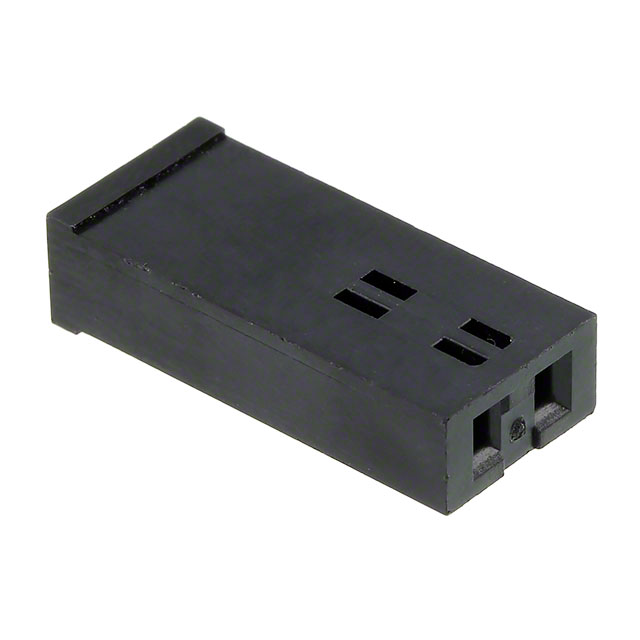

CONN RCPT HSG 2POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	87270-2	87270 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Features	-	Positions Molded Closed
Insulation Material	Thermoplastic	Polyester, Glass Filled, Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	1 - 12
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch	-	0.156 in
Pitch	-	3.96 mm

CONN RCPT HSG 4POS

Part	Contact Termination	Note	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Features	Color	Insulation Material	Number of Rows	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 87270-3	Crimp	Contacts Not Included	Receptacle	4	-65 ░C	105 ░C	Free Hanging (In-Line)	Female Socket	Positions Molded Closed	Black	Polyester, Glass Filled	1
TE Connectivity AMP Connectors 87270-2	Crimp	Contacts Not Included	Receptacle	2	-65 ░C	105 ░C	Free Hanging (In-Line)	Female Socket		Black	Thermoplastic	1
TE Connectivity AMP Connectors 1-87270-6	Crimp	Contacts Not Included	Receptacle	9	-65 ░C	105 ░C	Free Hanging (In-Line)	Female Socket		Black	Thermoplastic	1	0.156 in	3.96 mm
TE Connectivity AMP Connectors 87270-7	Crimp	Contacts Not Included	Receptacle	10	-65 ░C	105 ░C	Free Hanging (In-Line)	Female Socket		Black	Thermoplastic	1
TE Connectivity AMP Connectors 87270-1	Crimp	Contacts Not Included	Receptacle	1	-65 ░C	105 ░C	Free Hanging (In-Line)	Female Socket		Black	Thermoplastic	1
TE Connectivity AMP Connectors 1-87270-4	Crimp	Contacts Not Included	Receptacle		-65 ░C	105 ░C	Free Hanging (In-Line)	Female Socket		Black	Thermoplastic	1	0.156 in	3.96 mm
TE Connectivity AMP Connectors 1-87270-5	Crimp	Contacts Not Included	Receptacle	7	-65 ░C	105 ░C	Free Hanging (In-Line)	Female Socket		Black	Thermoplastic	1	0.156 in	3.96 mm
TE Connectivity AMP Connectors 87270-8	Crimp	Contacts Not Included	Receptacle	12	-65 ░C	105 ░C	Free Hanging (In-Line)	Female Socket		Black	Thermoplastic	1
