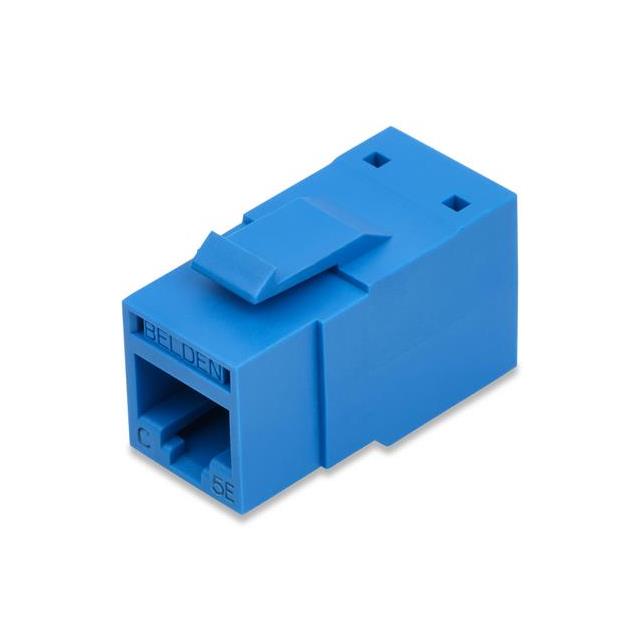

Specification	RVAMJKUTN-B24

Connector Type	Jack, Ethernet, RJ45
Contact Finish	Gold
Contact Material	Copper
LED Color	Does Not Contain LED
Mounting Type	Panel Mount
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Orientation	Straight
Ratings	Cat5e
Tab Direction	Down
Termination	IDC

RVAMJKU Series

Part	Number of Ports	Termination	Tab Direction	Contact Finish	Mounting Type	Number of Rows	Number of Positions	Connector Type	Number of Contacts	Contact Material	Orientation	Ratings	Shielding	LED Color	Exterior Housing Color	Interior Contact Material	Exterior Type (Adapter End)	Interior Housing Material	Exterior Contact Finish	Exterior Housing Material	Operating Temperature (Max)	Operating Temperature (Min)	Interior Type (Adapter End)	Interior Contact Finish	Specifications	Interior Housing Color	Style	Exterior Contact Finish Thickness
Belden Inc. RVAMJKUTR-B24	1	IDC	Down	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper Alloy	Straight	Cat5e	Unshielded	Does Not Contain LED
Belden Inc. RVAMJKUGN-B24	1	IDC	Down	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper Alloy	Straight	Cat6a	Shielded	Does Not Contain LED
Belden Inc. RVAMJKUTO-S1	1	IDC	Down	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper Alloy	Straight	Cat5e	Unshielded	Does Not Contain LED
Belden Inc. RVAMJKUTB-S1	1	IDC	Down	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper	Straight	Cat5e		Does Not Contain LED
Belden Inc. RVAMJKUIV-B24	1	IDC	Down	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper Alloy	Straight	Cat6a	Shielded	Does Not Contain LED
Belden Inc. RVAMJKUIV-S1	1	IDC	Down	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper Alloy	Straight	Cat6a	Shielded	Does Not Contain LED
Belden Inc. RVAMJKUTP-B24	1	IDC	Down	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper Alloy	Straight	Cat5e	Unshielded	Does Not Contain LED
Belden Inc. RVAMJKUBL-B24												Cat6a			Blue	Copper Alloy	Modular Jack 8p8c (RJ45 Ethernet)	Glass Filled Polybutylene Terephthalate (PBT)	Gold	Glass Filled Polybutylene Terephthalate (PBT)	60 °C	-10 °C	Ethernet) Modular Jack 8p8c (RJ45	Gold	10G Base-T	Blue	Modular	50 µin
Belden Inc. RVAMJKUTN-B24	1	IDC	Down	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper	Straight	Cat5e		Does Not Contain LED
Belden Inc. RVAMJKUBR-S1	1	IDC	User Selectable	Gold	Panel Mount	1	8	Ethernet Jack RJ45	8	Copper Alloy	Straight	Cat6a	Unshielded	Does Not Contain LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

RVAMJKUTN-B24 | Datasheet
