ZH-100-2-0-SP

Active

TE Connectivity Raychem Cable Protection

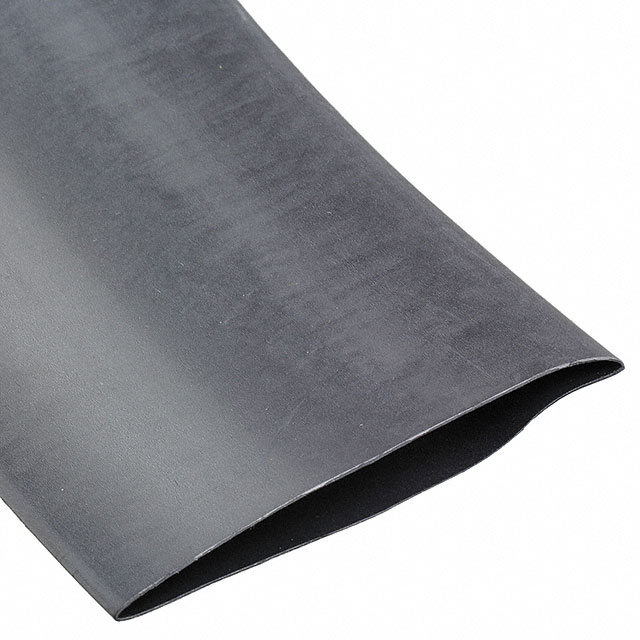

HEATSHRINK 2" X 98.4' BLACK

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 2" X 98.4' BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 2.000" (50.80mm) 2 to 1 Black 98.4' (30.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ZH-100-2-0-SP	ZH100 Series

	-	-
Color	Black	Black
Features	Fluid Resistant, Flame Retardant	Fluid Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	25.4 mm	1.6 - 25.4 mm
Inner Diameter - Recovered [diameter]	1 in	0.063 - 1 "
Inner Diameter - Supplied [diameter]	50.8 mm	3.2 - 50.8 mm
Inner Diameter - Supplied [diameter]	2 in	0.126 - 2 in
Length [x]	98.4 ft	4 - 98.4 ft
Length [x]	30 m	1.22 - 30 m
Material	Polyolefin (PO), Irradiated, Halogen Free	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Recovered Wall Thickness	0.045 in	0.02 - 0.045 in
Recovered Wall Thickness	1.14 mm	0.51 - 1.14 mm
Recovered Wall Thickness	-	0.03 "
Shelf Life	144 Months	144 Months
Shrink Temperature	80 °C	80 °C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C	0 - 65 °F
Type	Tubing, Flexible	Tubing, Flexible

HEATSHRINK 0.748" BLACK

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Length [x]	Length [x]	Shrink Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio	Features	Material	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Type	Recovered Wall Thickness
TE Connectivity Raychem Cable Protection ZH-100-3/4-0-STK	0.748 in	19 mm	Black	0.76 mm	0.03 "	0.374 "	9.5 mm	144 Months	1.22 m	4 ft	80 °C	-30 ░C	105 ░C	2 to 1	Flame Retardant, Fluid Resistant	Polyolefin (PO), Irradiated, Halogen Free	18 °C, 65 °F	35 °C	Tubing, Flexible
TE Connectivity Raychem Cable Protection ZH-100-1/8-0-SP	0.126 in	3.2 mm	Black	0.51 mm		0.063 in	1.6 mm	144 Months			80 °C	-30 ░C	105 ░C	2 to 1	Flame Retardant, Fluid Resistant	Polyolefin (PO), Irradiated, Halogen Free	0 °C	35 °C	Tubing, Flexible	0.02 in
TE Connectivity Raychem Cable Protection ZH-100-1/4-0-SP
TE Connectivity Raychem Cable Protection ZH-100-1/2-0-SP
TE Connectivity Raychem Cable Protection ZH-100-2-0-SP	2 in	50.8 mm	Black	1.14 mm		1 in	25.4 mm	144 Months	30 m	98.4 ft	80 °C	-30 ░C	105 ░C	2 to 1	Flame Retardant, Fluid Resistant	Polyolefin (PO), Irradiated, Halogen Free	18 °C, 65 °F	35 °C	Tubing, Flexible	0.045 in
