S24SE05004PDFH

Active

Delta Electronics

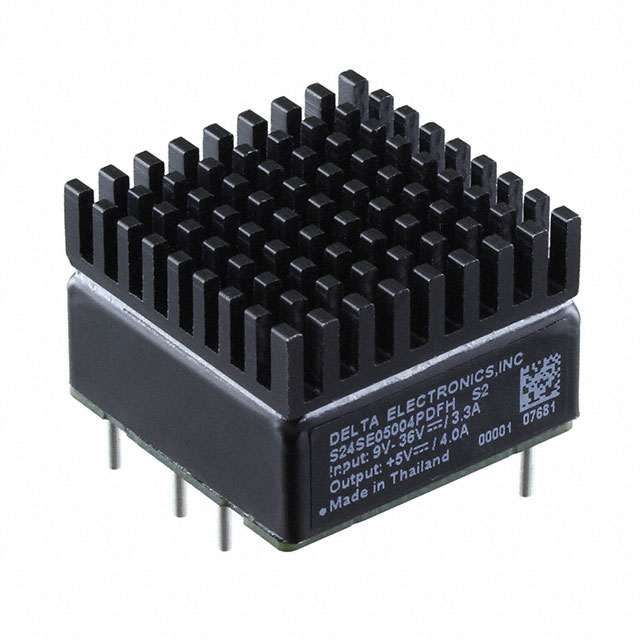

DC DC CONVERTER 5V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S24SE05004PDFH

Active

Delta Electronics

DC DC CONVERTER 5V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 40.45
		5	$ 40.13
		10	$ 39.82
		30	$ 38.55
		50	$ 36.66
		100	$ 34.13
		250	$ 33.62

Description

General part information

S24SE Series

Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S24SE05004PDFH	S24SE Series

Applications	ITE (Commercial)	Railway, ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	4 A	1.25 - 830 A
Efficiency	88 %	86 - 89 %
Features	OVP, OCP, OTP, Remote On/Off	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-DIP Module	6-DIP Module
Power (Watts)	20 W	10 - 30 W
Size / Dimension	-	0.4 "
Size / Dimension	-	25.4 mm
Size / Dimension	-	1 in
Size / Dimension	-	25.4 mm
Size / Dimension	-	25.4 mm
Size / Dimension	-	10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	9 V	9 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	5 V	3.3 - 15 V

S24SE Series

DC DC CONVERTER 5V 15W

Part	Efficiency	Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output 1	Features	Applications	Mounting Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Delta Electronics S24SE05003PDFH	89 %	Isolated Module	Active High, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	3 A	15 W	5 V	OCP, OTP, OVP, Remote On/Off, UVLO	ITE (Commercial), Railway	Through Hole
Delta Electronics S24SE12003NDFA	88 %	Isolated Module	Active Low, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	2.5 A	30 W	12 V	Remote On/Off, UVLO	ITE (Commercial)	Through Hole	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE120R8PDFH	86 %	Isolated Module	Active High, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	830 mA	10 W	12 V	OCP, OTP, OVP, Remote On/Off, UVLO	ITE (Commercial), Railway	Through Hole
Delta Electronics S24SE12001NDFA	87.5 %	Isolated Module	Active Low, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	1.25 A	15 W	12 V	Remote On/Off, UVLO	ITE (Commercial)	Through Hole	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE12001PDFH	87.5 %	Isolated Module	Active High, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	1.25 A	15 W	12 V	OCP, OTP, OVP, Remote On/Off, UVLO	ITE (Commercial), Railway	Through Hole
Delta Electronics S24SE150R6NDFA	87 %	Isolated Module	Active Low, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	670 mA	10 W	15 V	Remote On/Off, UVLO	ITE (Commercial)	Through Hole	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE12002PDFH	88 %	Isolated Module	Active High, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	1.67 A	20 W	12 V	OCP, OTP, OVP, Remote On/Off	ITE (Commercial)	Through Hole	1
Delta Electronics S24SE12001PDFA	87.5 %	Isolated Module	Active High, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	1.25 A	15 W	12 V	Remote On/Off, UVLO	ITE (Commercial)	Through Hole	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
Delta Electronics S24SE15002PDFH	88 %	Isolated Module	Active High, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	2 A	30 W	15 V	OCP, OTP, OVP, Remote On/Off, UVLO	ITE (Commercial), Railway	Through Hole
Delta Electronics S24SE05004PDFH	88 %	Isolated Module	Active High, Enable	85 °C	-40 °C	6-DIP Module	36 V	1.6 kV	9 V	4 A	20 W	5 V	OCP, OTP, OVP, Remote On/Off	ITE (Commercial)	Through Hole	1
