MXC8-PW27-0000

Obsolete

Lumileds

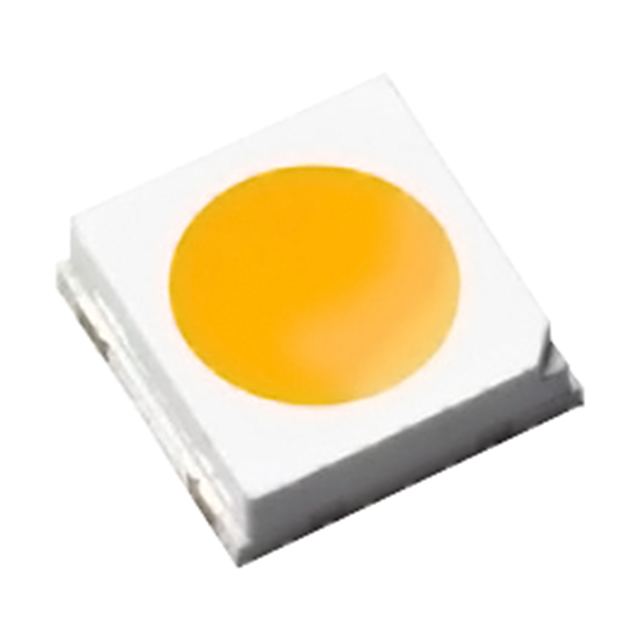

LED LUXEON WARM WHITE 2700K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MXC8-PW27-0000

Obsolete

Lumileds

LED LUXEON WARM WHITE 2700K 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MXC8-PW27-0000	MXC8-PW Series

CCT (K)	2700 K	2700 - 5700 K
Color	White, Warm	White, Warm, Cool, Neutral
CRI (Color Rendering Index)	80	80
Current - Max [Max]	200 mA	200 mA
Current - Test	100 mA	100 mA
Flux @ 25°C, Current - Test	69 lm	69 - 82 lm
Height - Seated (Max) [Max] [z]	0.035 "	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.9 mm
Lumens/Watt @ Current - Test	113 lm/W	113 - 131 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [x]	0.138 "	0.138 "
Size / Dimension [y]	3.4 mm	3.4 mm
Size / Dimension [y]	0.134 in	0.134 in
Supplier Device Package	3535	3535
Thermal Resistance of Package [diameter]	18 °C/W	18 °C/W
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	6.1 V	6.1 V

MXC8-PW Series

LED LUXEON WARM WHITE 2700K 3535

Part	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Mounting Type	CCT (K)	Viewing Angle	Current - Test	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test	Supplier Device Package	Color
Lumileds MXC8-PW27-VZ05	3535 Metric	1414	3.4 mm	0.134 in	3.5 mm	0.138 "	6.1 V	200 mA	131 lm/W	80	Surface Mount	2700 K	115 °	100 mA	18 °C/W	0.035 "	0.9 mm	80 lm	3535	Warm, White
Lumileds MXC8-PW27-YD02	3535 Metric	1414	3.4 mm	0.134 in	3.5 mm	0.138 "	6.1 V	200 mA	131 lm/W	80	Surface Mount	2700 K	115 °	100 mA	18 °C/W	0.035 "	0.9 mm	80 lm	3535	Warm, White
Lumileds MXC8-PW50-0000	3535 Metric	1414	3.4 mm	0.134 in	3.5 mm	0.138 "	6.1 V	200 mA	123 lm/W	80	Surface Mount	5000 K	115 °	100 mA	18 °C/W	0.035 "	0.9 mm	75 lm	3535	Cool, White
Lumileds MXC8-PW40-WY04	3535 Metric	1414	3.4 mm	0.134 in	3.5 mm	0.138 "	6.1 V	200 mA		80	Surface Mount	4000 K	115 °	100 mA	18 °C/W	0.035 "	0.9 mm	82 lm	3535	Neutral, White
Lumileds MXC8-PW27-0000	3535 Metric	1414	3.4 mm	0.134 in	3.5 mm	0.138 "	6.1 V	200 mA	113 lm/W	80	Surface Mount	2700 K	115 °	100 mA	18 °C/W	0.035 "	0.9 mm	69 lm	3535	Warm, White
Lumileds MXC8-PW57-0038	3535 Metric	1414	3.4 mm	0.134 in	3.5 mm	0.138 "	6.1 V	200 mA	120 lm/W	80	Surface Mount	5700 K	115 °	100 mA	18 °C/W	0.035 "	0.9 mm	73 lm	3535	Cool, White
Lumileds MXC8-PW30-0038	3535 Metric	1414	3.4 mm	0.134 in	3.5 mm	0.138 "	6.1 V	200 mA	131 lm/W	80	Surface Mount		115 °	100 mA	18 °C/W	0.035 "	0.9 mm	80 lm	3535	Warm, White
Lumileds MXC8-PW27-XB03	3535 Metric	1414	3.4 mm	0.134 in	3.5 mm	0.138 "	6.1 V	200 mA	131 lm/W	80	Surface Mount	2700 K	115 °	100 mA	18 °C/W	0.035 "	0.9 mm	80 lm	3535	Warm, White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Reel®	1	$ 0.60

Description

General part information

MXC8-PW Series

LED Lighting LUXEON 3535 2D White, Warm 2700K 6.1V 100mA 115° 1414 (3535 Metric)

Documents

Technical documentation and resources
