01072-081

Active

Sensata-BEI Sensors

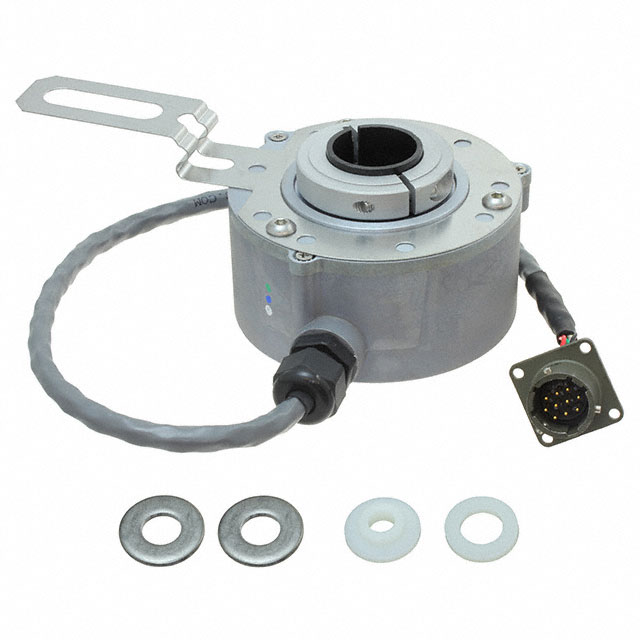

ROTARY ENCODER OPTICAL 1024PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 1024PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01072-081

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	1024
Rotational Life (Cycles Min) [Min]	7.5B
Termination Style	Connector
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	5 V

Part	Output Type	Termination Style	Encoder Type	Rotational Life (Cycles Min) [Min]	Pulses per Revolution	Orientation	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Actuator Type
Sensata-BEI Sensors 01072-384	Quadrature with Index (Incremental)	Connector	Optical	7.5B	1000	User Selectable	Chassis Mount Motors	5 V	28 V	Hole for Shaft
Sensata-BEI Sensors 01072-081	Quadrature with Index (Incremental)	Connector	Optical	7.5B	1024	User Selectable	Chassis Mount Motors	5 V	15 V	Hole for Shaft
Sensata-BEI Sensors 01072-112	Quadrature with Index (Incremental)	Connector	Optical	7.5B	2048	User Selectable	Chassis Mount	5 V	28 V	Hole for Shaft
Sensata-BEI Sensors 01072-728	Quadrature (Incremental)	Cable	Optical	7.5B	500	User Selectable	Chassis Mount	5 V	28 V	Hole for Shaft
Sensata-BEI Sensors 01072-115	Quadrature with Index (Incremental)	Cable	Optical	7.5B	1024	User Selectable	Chassis Mount	5 V	15 V	Hole for Shaft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODER OPTICAL 1024PPR

Technical documentation and resources
