KSW30B-0100

Active

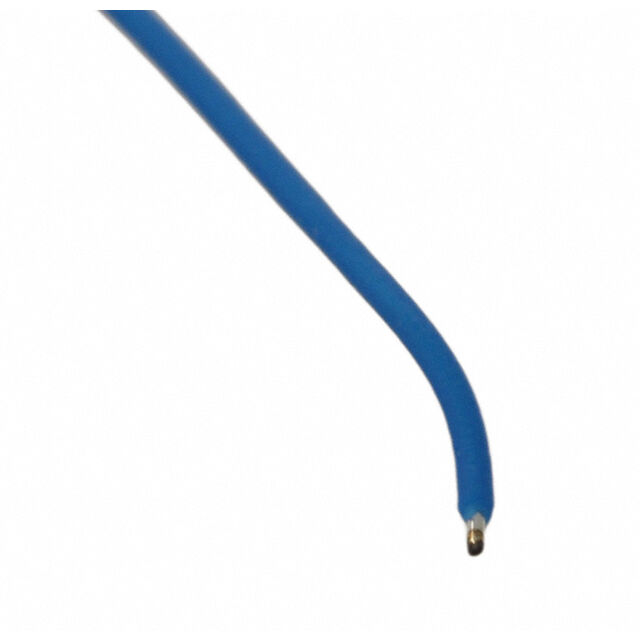

WIRE WW 30AWG PVDF BLUE 100'

Active

WIRE WW 30AWG PVDF BLUE 100'

Description

General part information

Wire Wrap 30 AWG Blue Polyvinylidene Fluoride (PVDF) 100' (30.5m)

Parameters and characteristics for this part

Specification	KSW30B-0100

Conductor Diameter	0.01 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter	0.019 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness	0.004 in
Jacket Color	Blue
Length	100 ft
Ratings	Style, UL, 1423
Wire Gauge	30 AWG

Part	Jacket (Insulation) Thickness	Length	Conductor Material	Conductor Diameter	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Ratings	Wire Gauge	Conductor Plating
Jonard Tools KSW30B-1000	0.004 in	1000 ft	Bare Copper	0.01 in	Blue	Polyvinylidene Fluoride (PVDF)	0.019 in	1423 Style UL	30 AWG	Silver
Jonard Tools KSW30B-0100	0.004 in	100 ft	Bare Copper	0.01 in	Blue	Polyvinylidene Fluoride (PVDF)	0.019 in	1423 Style UL	30 AWG	Silver
Jonard Tools KSW30BLK-1000	0.004 in	1000 ft	Bare Copper	0.01 in	Black	Polyvinylidene Fluoride (PVDF)	0.019 in	1423 Style UL	30 AWG	Silver
Jonard Tools KSW30BLK-0100	0.004 in	100 ft	Bare Copper	0.01 in	Black	Polyvinylidene Fluoride (PVDF)	0.019 in	1423 Style UL	30 AWG	Silver
