PD204-6 Series

Part	Package / Case	Mounting Type	Wavelength	Spectral Range (Minimum)	Spectral Range (Maximum)	Active Area	Current - Dark (Typ)	Response Time	Diode Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - DC Reverse (Vr) (Max)
Everlight Electronics Co Ltd PD204-6C/L3	Radial	Through Hole	940 nm	760 nm	1100 nm	9 mm²	10 nA	10 ns	Pin	85 °C	-25 °C	170 V

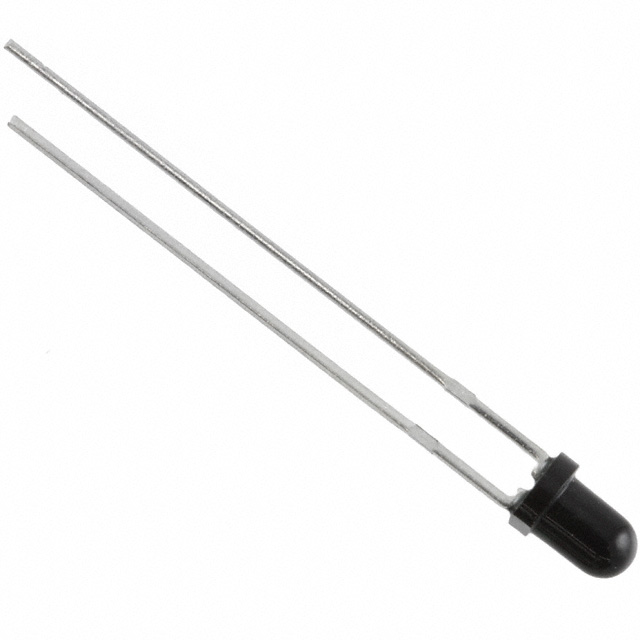

Everlight Electronics Co Ltd PD204-6B	Radial T-1 Lens	Through Hole	940 nm	840 nm	1100 nm		10 nA	6 ns	Pin	85 °C	-25 °C	170 V
Everlight Electronics Co Ltd PD204-6C	Radial	Through Hole	940 nm	400 nm	1100 nm	9 mm²	10 nA	6 ns	Pin	85 °C	-25 °C	170 V
