Part	Contact Termination	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Finish	Type	Contact Type	Termination Finish	Accessory Type	For Use With/Related Products	Color	Contact Material	Features	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Size
ITT Cannon, LLC 121668-0022	Crimp	1.5 mm²	0.5 mm²	0	Flash	Flash	Gold	Signal Stamped	Socket	Gold

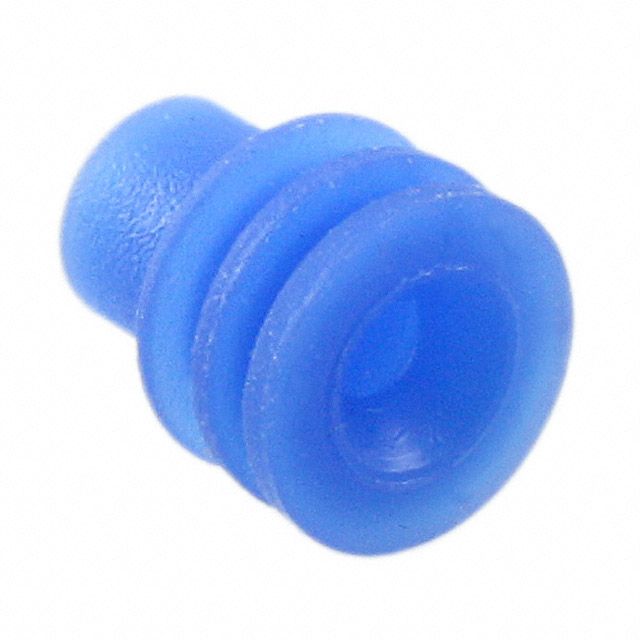

ITT Cannon, LLC 121668-0033											Wire Seal	APD 4-Way Connectors	Blue
ITT Cannon, LLC 121668-0222-PC	Crimp	1.5 mm²	0.75 mm²				Tin	Stamped	Socket	Tin
ITT Cannon, LLC 121668-0101	Crimp	2.5 mm²	1.5 mm²				Tin	Power Stamped	Socket					Copper Alloy	Insulation Support	16 AWG	14 AWG
ITT Cannon, LLC 121668-0126	Crimp	2.5 mm²	1.5 mm²				Tin	Power Stamped	Socket	Tin						16 AWG	14 AWG
ITT Cannon, LLC 121668-0125	Crimp	1.5 mm²	0.5 mm²				Tin	Power Stamped	Socket	Tin						18 AWG	16 AWG
ITT Cannon, LLC 121668-0268/PC	Crimp	1.5 mm²	0.75 mm²	31.5 µin			Gold	Signal Stamped	Socket					Copper Alloy	Insulation Support	18 AWG	16 AWG	16 S
ITT Cannon, LLC 121668-0267	Crimp	1.5 mm²	0.75 mm²	31.5 µin			Gold	Machined Signal	Pin	Gold
ITT Cannon, LLC 121668-0255	Crimp	1.5 mm²	0.75 mm²				Tin	Machined Signal	Pin	Tin
ITT Cannon, LLC 121668-0026	Crimp	1 mm²	0.5 mm²				Tin	Power Stamped	Pin	Tin						18 AWG	16 AWG
