General part information

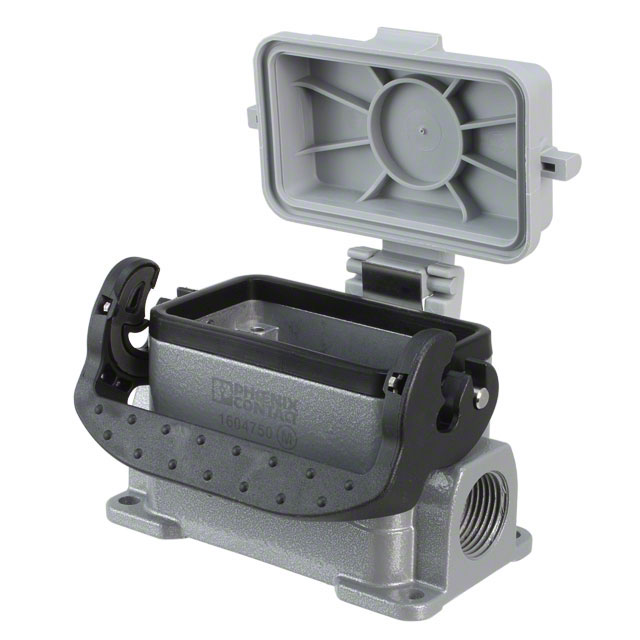

Heavy Duty Power Connectors HC-B10-SMLD-52/O2M20
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1604750 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Feed Through |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | B10 |
| Size / Dimension [x] | 93 mm |
| Size / Dimension [x] | 3.661 inches |
| Size / Dimension [y] | 2.244 " |
| Size / Dimension [y] | 57 mm |
| Size / Dimension [z] | 52 mm |
| Size / Dimension [z] | 2.047 in |
| Style | Side Entry |
| Thread Size | M20 |
Heavy Duty Power Connectors HC-B10-SMLD-52/O2M20
| Part | Style | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Housing Color | Lock Location | Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Housing Material | Connector Type | Features | Thread Size | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1604750 | Side Entry | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | Gray | Locking Clip (1) on Base Bottom | B10 | 52 mm | 93 mm | 2.244 " | 57 mm | 3.661 inches | 2.047 in | Aluminum, Die Cast | Base - Box Mount | Feed Through | M20 | Powder Coated |
