MAX11300PMB1#

Active

Analog Devices Inc./Maxim Integrated

EVAL MODULE FOR MAX11300

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL MODULE FOR MAX11300

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX11300PMB1#	MAX11300 Series

Contents	Board(s)	Board(s), Cable(s)
Data Interface	-	SPI
Function	ADC, DAC	ADC, DAC
Mounting Type	-	Surface Mount
Number of Channels	-	20
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Package / Case	-	48-TQFP Exposed Pad, 40-WFQFN Exposed Pad
Primary Attributes	Pmod™-Compatible	Pmod™-Compatible
Resolution (Bits)	-	12 b
Secondary Attributes	-	Graphical User Interface (GUI), SPI Interface(s)
Supplied Contents	Board(s)	Board(s), Cable(s)
Supplier Device Package	-	48-TQFP-EP (7x7), 40-TQFN
Type	Data Acquisition	Data Acquisition, DAC, ADC
Utilized IC / Part	MAX11300	MAX11300
Voltage - Supply	-	1.62 V
Voltage - Supply	-	5.5 V
Voltage Supply Source	-	Analog and Digital

EVAL KIT FOR MAX11300

Part	Utilized IC / Part	Supplied Contents	Secondary Attributes	Contents	Function	Type	Supplier Device Package	Number of Channels	Voltage Supply Source	Mounting Type	Resolution (Bits)	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Interface	Operating Temperature [Min]	Operating Temperature [Max]	Primary Attributes
Analog Devices Inc./Maxim Integrated MAX11300SYS1#	MAX11300	Board(s)	Graphical User Interface (GUI)	Board(s)	ADC, DAC	Data Acquisition
Analog Devices Inc./Maxim Integrated MAX11300GCM+T						ADC, DAC	48-TQFP-EP (7x7)	20	Analog and Digital	Surface Mount	12 b	48-TQFP Exposed Pad	1.62 V	5.5 V	SPI	-40 °C	105 ░C
Analog Devices Inc./Maxim Integrated MAX11300EVKIT#	MAX11300	Board(s), Cable(s)	SPI Interface(s)	Board(s), Cable(s)	ADC, DAC	Data Acquisition
Analog Devices Inc./Maxim Integrated MAX11300GTL+						ADC, DAC	40-TQFN	20	Analog and Digital	Surface Mount	12 b	40-WFQFN Exposed Pad	1.62 V	5.5 V	SPI	-40 °C	105 ░C
Analog Devices Inc./Maxim Integrated MAX11300PMB1#	MAX11300	Board(s)		Board(s)	ADC, DAC	Data Acquisition												Pmod™-Compatible
Analog Devices Inc./Maxim Integrated MAX11300GCM+						ADC, DAC	48-TQFP-EP (7x7)	20	Analog and Digital	Surface Mount	12 b	48-TQFP Exposed Pad	1.62 V	5.5 V	SPI	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.87

General part information

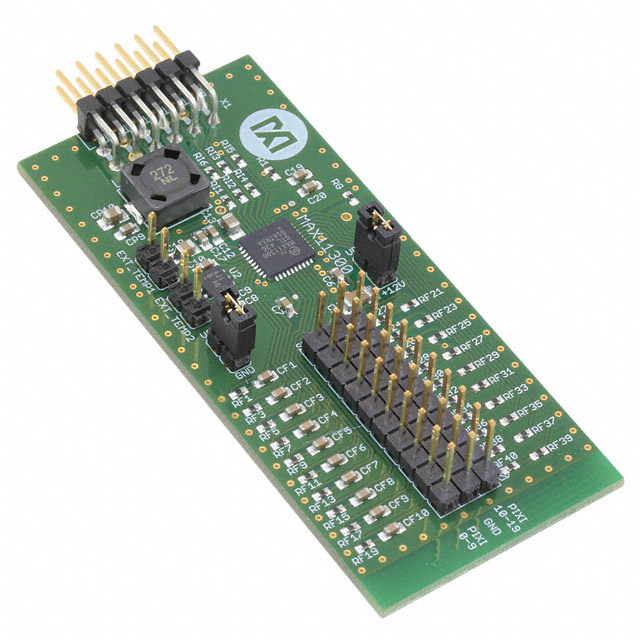

MAX11300 ADC, DAC Data Acquisition Evaluation Board
