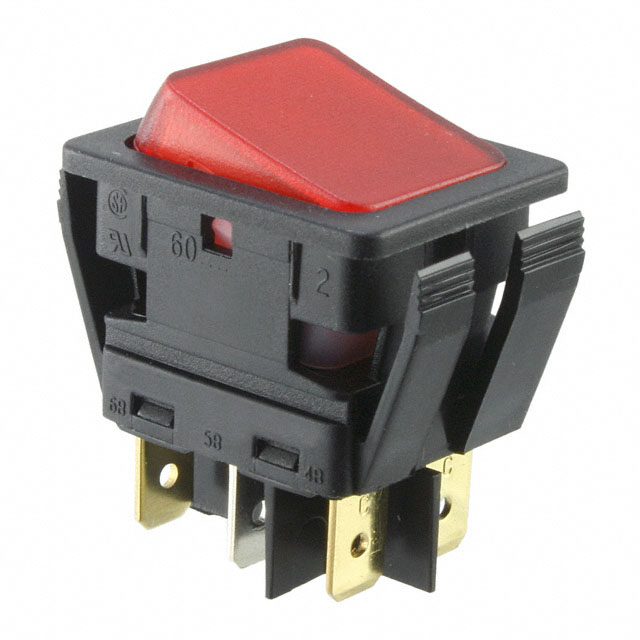

C6067ALBR2-B

Active

BULGIN LIMITED

SWITCH ROCKER DPDT 20A 277V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH ROCKER DPDT 20A 277V

Technical Specifications

Parameters and characteristics for this part

Specification	C6067ALBR2-B

Actuator Marking	No Marking
Actuator Type	Flat - Illuminated
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	20 A
Features	Antimicrobial
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	125 VAC
Ingress Protection	Splash Proof
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.1 mm
Panel Cutout Dimensions [y]	22.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	277 V

Part	Switch Function	Termination Style	Features	Voltage Rating - AC	Current Rating (Amps)	Ingress Protection	Mounting Type	Actuator Type	Color - Actuator/Cap	Actuator Marking	Approval Agency	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Illumination Type, Color
BULGIN LIMITED C6067ALBR2-B	On-On	Quick Connect - 0.250" (6.3mm)	Antimicrobial	277 V	20 A	Splash Proof	Panel Mount Snap-In	Flat - Illuminated	Red	No Marking	CSA UL	DPDT	30.1 mm	22.2 mm	125 VAC	Neon Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.23

General part information

Rocker Switch DPDT 20A (AC) 277 V Panel Mount, Snap-In

Technical documentation and resources
