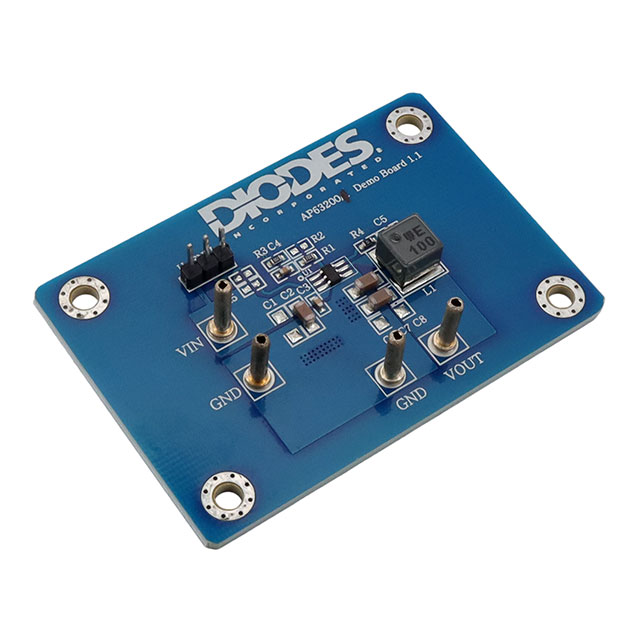

AP63200WU-EVM

Active

Diodes Inc

EVAL BOARD FOR AP63200

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR AP63200

Technical Specifications

Parameters and characteristics for this part

Part	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Frequency - Switching	Current - Output	Main Purpose	Board Type	Supplied Contents	Number of Outputs	Output Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Supplier Device Package	Topology	Function	Voltage - Output (Min/Fixed)	Output Configuration	Mounting Type	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Synchronous Rectifier
Diodes Inc AP63200WU-EVM	Buck	Non-Isolated	1	5 V	32 V	3.8 V	AP63200	500 kHz	2 A	DC/DC Step Down	Fully Populated	Board(s)
Diodes Inc AP63200WU-7								500 kHz	2 A				1	Adjustable	3.8 V	32 V	TSOT-23-6	Buck	Step-Down	1.2 V	Positive	Surface Mount	12 V	85 °C	-40 °C	SOT-23-6 Thin TSOT-23-6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.39

General part information

AP63200 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
