DZ3S082D0L
UnknownPanasonic Industrial Automation Sales
DIODE ZENER ARRAY 8.2V SSMINI3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DZ3S082D0L |
|---|---|
| Configuration | 1 Pair Common Anode |
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) [Max] | 30 Ohms |
| Mounting Type | Surface Mount |

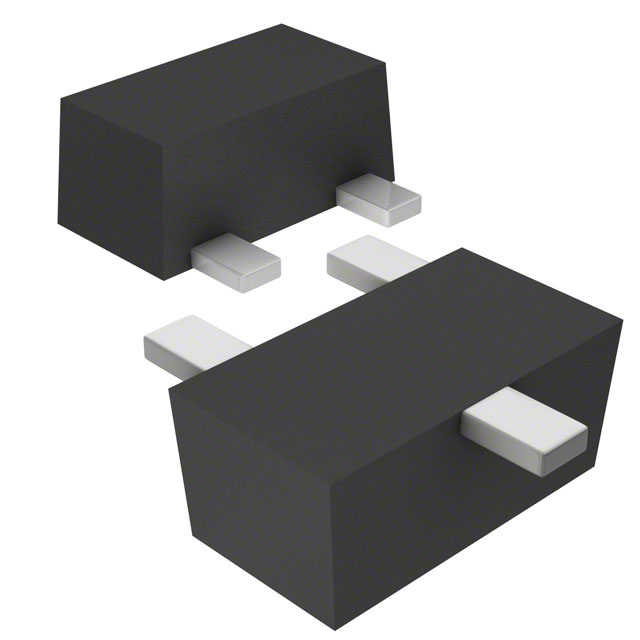

| Package / Case | SC-89, SOT-490 |
| Power - Max [Max] | 150 mW |
| Supplier Device Package | SSMini3-F3-B |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Zener (Nom) (Vz) | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.05 | |
| 9000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.03 | |||
Description
General part information
DZ3S082 Series
Zener Diode Array 1 Pair Common Anode 8.2 V 150 mW SSMini3-F3-B
