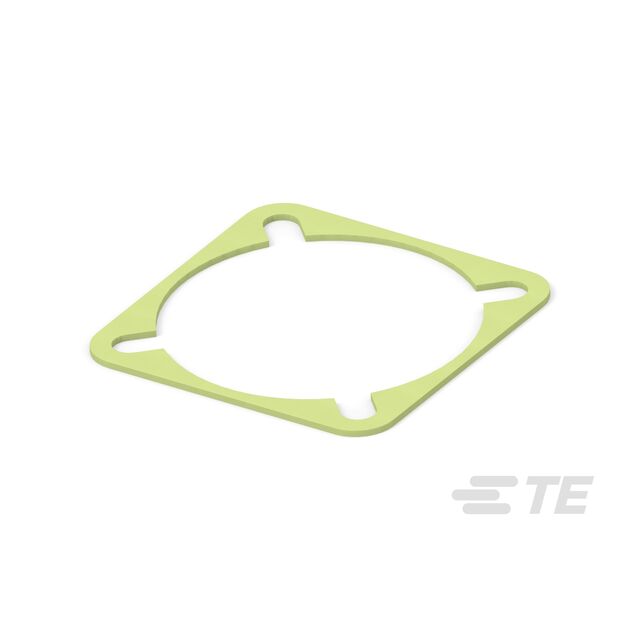

93-22064

Active

RFI GASKET FSA

Active

RFI GASKET FSA

Description

General part information

RFI GASKET FSA

Parameters and characteristics for this part

Specification	93-22064

Height	0.031 in
Length	1.5 in
Material	Fluorosilicone Silver Aluminum
Operating Temperature (Max)	160 °C
Operating Temperature (Min)	-55 °C
Shape	Square
Type	Gasket
Width	1.5 in

Part	Length	Operating Temperature (Min)	Operating Temperature (Max)	Height	Shape	Type	Width	Material
TE Kemtron 93-22066	1.625 in	-55 °C	160 °C	0.031 in	Square	Gasket	1.625 in	Silicone Silver Aluminum
TE Kemtron 93-22012	0.965 in	-55 °C	160 °C	0.031 in	Square	Gasket	0.965 in	Fluorosilicone Nickel Graphite
TE Kemtron 93-22013	1.06 in	-55 °C	160 °C	0.031 in	Square	Gasket	1.06 in	Fluorosilicone Nickel Graphite
TE Kemtron 93-22059	1.351 in	-55 °C	160 °C	0.031 in	Square	Gasket	1.351 in	Fluorosilicone Nickel Graphite
TE Kemtron 93-22062	1.5 in	-55 °C	160 °C	0.031 in	Square	Gasket	1.5 in	Silicone Silver Aluminum
TE Kemtron 93-22056	1.258 in	-55 °C	160 °C	0.031 in	Square	Gasket	1.258 in	Fluorosilicone Silver Aluminum
TE Kemtron 93-22021	0.84 in	-55 °C	160 °C	0.031 in	Square	Gasket	0.84 in	Silicone Silver Aluminum
TE Kemtron 93-22064	1.5 in	-55 °C	160 °C	0.031 in	Square	Gasket	1.5 in	Fluorosilicone Silver Aluminum
TE Kemtron 93-22044	0.965 in	-55 °C	160 °C	0.031 in	Square	Gasket	0.965 in	Fluorosilicone Silver Aluminum
TE Kemtron 93-22026	1.351 in	-55 °C	160 °C	0.031 in	Square	Gasket	1.351 in	Silicone Silver Aluminum
