Q-2P01Q0005072I

Active

Amphenol Custom Cable

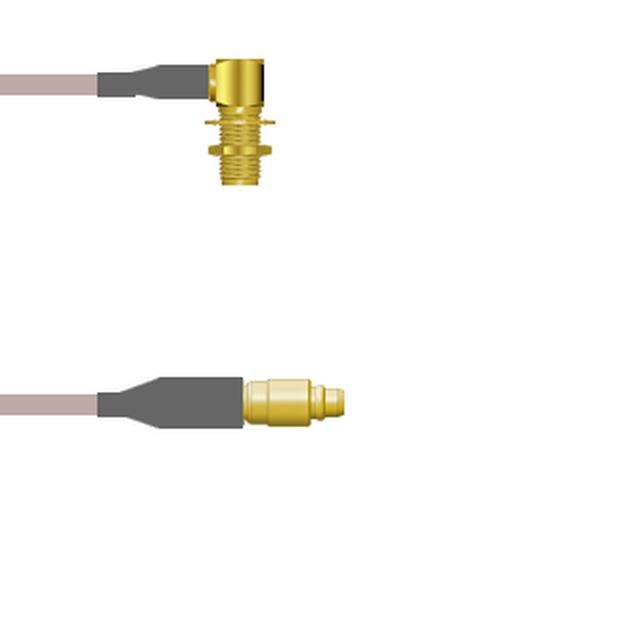

COAX CBL SMA TO MMCX 6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO MMCX 6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P01Q0005072I

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMA to MMCX

Part	Features	Style	1st Connector Mounting Feature	Connector Impedance	Length	Length	Length	Color	2nd Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	Cable Impedance	1st Connector	2nd Connector	1st Connector Mounting Type	Cable Type	Overall Impedance	1st Contact Gender
Amphenol Custom Cable Q-2P01Q0005072I	Shielded	SMA to MMCX	Bulkhead - Front Side Nut	50 Ohms	6 ft	72 in	1.8 m	Copper	Male	3 GHz	Free Hanging (In-Line)	50 Ohms	Right Angle SMA Jack	MMCX Plug	Panel Mount	RG-316	50 Ohms	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to MMCX RG-316 72.0" (1.8m) 6.0'

Technical documentation and resources

No documents available
