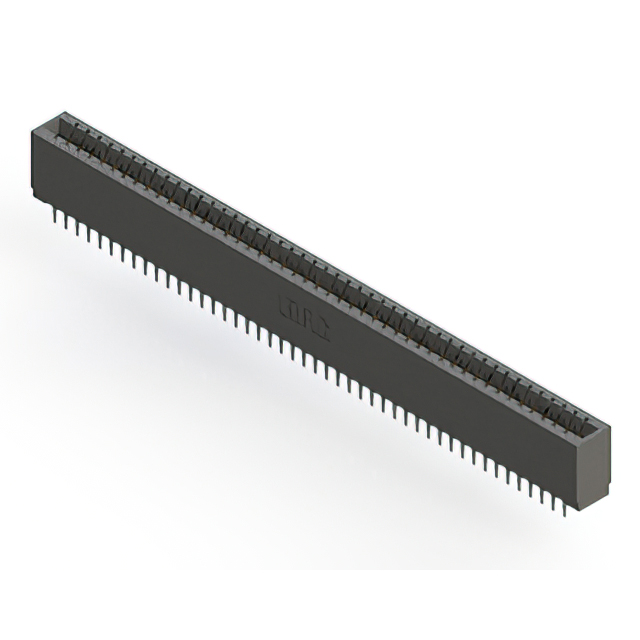

746-092-525-601

Active

EDAC Inc.

CONN EDGE DUAL FMALE 92POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

746-092-525-601

Active

EDAC Inc.

CONN EDGE DUAL FMALE 92POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-092-525-601

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	92
Number of Positions/Bay/Row [custom]	46
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

746-092 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Termination	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Type	Card Type	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Material - Insulation	Pitch [x]	Pitch [x]	Number of Positions	Read Out
EDAC Inc. 746-092-545-606	-40 °C	105 ░C	Black	Through Hole	Press-Fit Wire Wrap	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-545-201	-40 °C	105 ░C	Black	Through Hole	Press-Fit Wire Wrap	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-545-601	-40 °C	105 ░C	Black	Through Hole	Press-Fit Wire Wrap	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-560-206	-40 °C	105 ░C	Black	Through Hole	Press-Fit	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever Make Before Break	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-525-601	-40 °C	105 ░C	Black	Through Hole	Press-Fit	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-541-606	-40 °C	105 ░C	Black	Through Hole	Press-Fit Wire Wrap	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-553-601	-40 °C	105 ░C	Black	Through Hole	Press-Fit Wire Wrap	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-553-201	-40 °C	105 ░C	Black	Through Hole	Press-Fit Wire Wrap	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-560-201	-40 °C	105 ░C	Black	Through Hole	Press-Fit	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever Make Before Break	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual
EDAC Inc. 746-092-527-201	-40 °C	105 ░C	Black	Through Hole	Press-Fit	Gold	46	Copper Alloy	0.76 Ám	30 Áin	Female	Cantilever	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Polyester Thermoplastic	0.125 in	3.18 mm	92	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.33
Newark	Each	1	$ 12.31
		100	$ 8.33
		250	$ 7.47
		500	$ 7.26
		1000	$ 6.25

Description

General part information

746-092 Series

92 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
