Q-0J00Q0003048i

Active

Amphenol Custom Cable

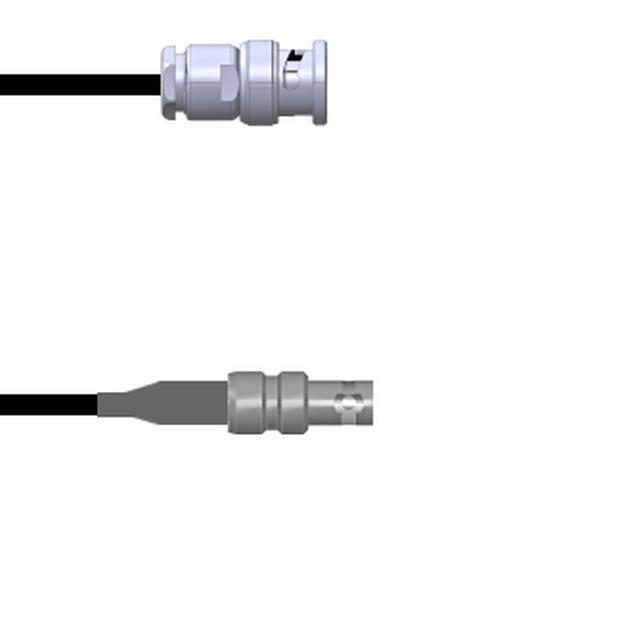

CBL ASSY BNC-HDBNC PLUG-JACK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J00Q0003048i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC PLUG-JACK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J00Q0003048i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0J00Q0 Series

Part	1st Contact Gender	Overall Impedance	1st Connector Mounting Type	Style	Frequency - Max [Max]	Length	Length	Length	2nd Contact Gender	Features	2nd Connector Mounting Type	1st Connector	Cable Type	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-0J00Q00051.5M	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	59.1 in	4.9 ft	1.5 m	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-316	Copper
Amphenol Custom Cable Q-0J00Q0005108i	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	108 in	9 ft	2.7 m	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-316	Copper
Amphenol Custom Cable Q-0J00Q00050.5M	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	19.69 "		50 cm	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-316	Copper
Amphenol Custom Cable Q-0J00Q0003.25M	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz				Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-174	Black	9.843 "	250 mm
Amphenol Custom Cable Q-0J00Q0003048i	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	48 in	4 ft	1200 mm	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-174	Black
Amphenol Custom Cable Q-0J00Q0005060i	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	5 '	5 ft	1.5 m	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-316	Copper
Amphenol Custom Cable Q-0J00Q0003006i	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	6 in		152.4 mm	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-174	Black
Amphenol Custom Cable Q-0J00Q0005036i	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	36 in		91.44 cm	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-316	Copper
Amphenol Custom Cable Q-0J00Q0003036i	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	36 in		91.44 cm	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-174	Black
Amphenol Custom Cable Q-0J00Q00052.5M	Male	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	4 GHz	98.4 in	8.2 '	2.5 m	Female	Shielded	Free Hanging (In-Line)	BNC Plug	RG-316	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 158.94
		25	$ 155.86
		50	$ 152.78
		100	$ 149.69
		250	$ 146.61

Description

General part information

Q-0J00Q0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-174 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
