2M1-3P1-T1-B1-M2QE

Active

Carling Technologies

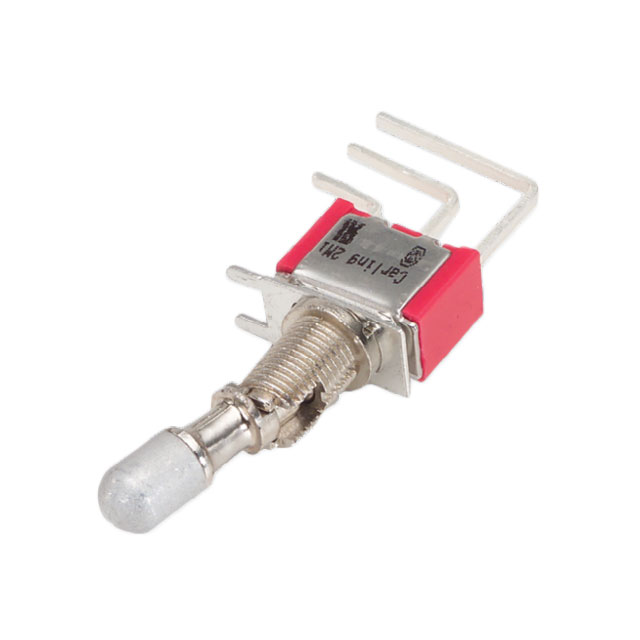

SWITCH TOGGLE 3PDT 5A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE 3PDT 5A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.36

General part information

Toggle Switch 3PDT Panel Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2M1-3P1-T1-B1-M2QE	2M1-3P1 Series

Actuator Length	-	5.41 - 10.39 mm
Actuator Length [z]	10.4 mm	10.4 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	Unthreaded, 1/4-40
Circuit	3PDT	3PDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	-	Through Hole, Right Angle, Through Hole, Vertical, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 in
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	125 V	20 - 125 V
Voltage Rating - DC	28 V	20 - 28 V

TOGGLE SWITCHES 2M1-3P1-T1-B4-M6GE

Part	Voltage Rating - AC	Mounting Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Electrical Life	Features	Voltage Rating - DC	Illumination	Actuator Material	Actuator Length [x]	Actuator Type	Bushing Thread	Ingress Protection	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Length [z]
Carling Technologies 2M1-3P1-T1-B4-M6GE	125 V	Through Hole, Right Angle	3PDT	-30 ░C	85 °C	5 A	PC Pin	50000 Cycles	Epoxy Sealed Terminals	28 V	Non-Illuminated	Brass, Chrome Plated	10.39 mm	Standard Round	Unthreaded	IP67 - Dust Tight, Waterproof	On-On
Carling Technologies 2M1-3P1-T2-B4-M7KE	20 V	Right Angle, Through Hole, Vertical	3PDT	-30 ░C	85 °C	0.4 VA	PC Pin	50000 Cycles	Epoxy Sealed Terminals	20 V	Non-Illuminated	Brass, Chrome Plated	5.41 mm	Standard Round	Unthreaded	IP67 - Dust Tight, Waterproof	On-On
Carling Technologies 2M1-3P1-T1-B1-M1GE	125 V		3PDT	-30 ░C	85 °C	5 A	Solder Lug	50000 Cycles	Epoxy Sealed Terminals	28 V	Non-Illuminated	Brass, Chrome Plated	10.39 mm	Standard Round	1/4-40	IP67 - Dust Tight, Waterproof	On-On	0.25 in
Carling Technologies 2M1-3P1-T1-B1-M2QE	125 V		3PDT	-30 ░C	85 °C	5 A	PC Pin	50000 Cycles	Epoxy Sealed Terminals	28 V	Non-Illuminated	Brass, Chrome Plated		Standard Round	1/4-40	IP67 - Dust Tight, Waterproof	On-On	0.25 in	10.4 mm
Carling Technologies 2M1-3P1-T1-B1-M6QE	125 V	Panel Mount, Right Angle	3PDT	-30 ░C	85 °C	5 A	PC Pin	50000 Cycles	Epoxy Sealed Terminals	28 V	Non-Illuminated	Brass, Chrome Plated	10.39 mm	Standard Round	1/4-40	IP67 - Dust Tight, Waterproof	On-On	0.25 in
