925366-6

Active

TE Connectivity AMP Connectors

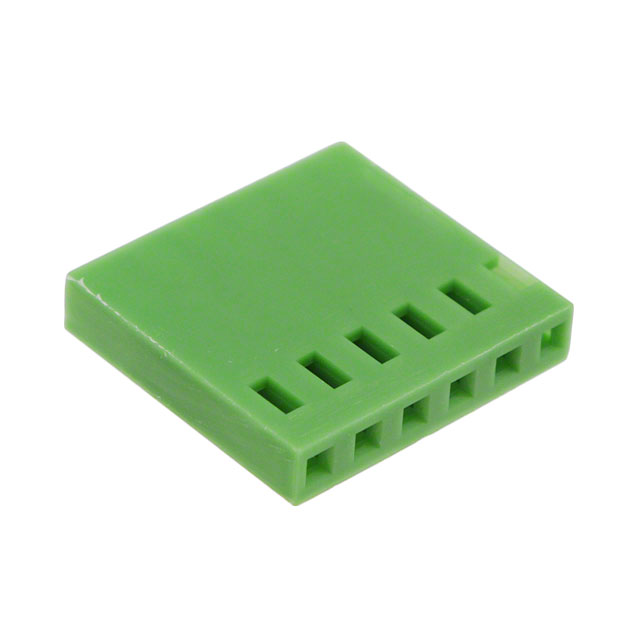

CONN RCPT HSG 6POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 5POS 2.54MM

Part	Contact Termination	Contact Type	Number of Rows	Insulation Material	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions
TE Connectivity AMP Connectors 925366-5	Crimp	Female Socket	1	Nylon, Polyamide (PA)	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Contacts Not Included	-65 ░C	105 ░C	Green
TE Connectivity AMP Connectors 1-925366-4	Crimp	Female Socket	1	Nylon, Polyamide (PA)	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Contacts Not Included	-65 ░C	105 ░C	Green	14
TE Connectivity AMP Connectors 1-925366-5	Crimp	Female Socket	1	Nylon, Polyamide (PA)	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Contacts Not Included	-65 ░C	105 ░C	Green	15
TE Connectivity AMP Connectors 925366-6	Crimp	Female Socket	1	Nylon, Polyamide (PA)	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Contacts Not Included	-65 ░C	105 ░C	Green	6
TE Connectivity AMP Connectors 925366-8	Crimp	Female Socket	1	Nylon, Polyamide (PA)	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Contacts Not Included	-65 ░C	105 ░C	Green	8
TE Connectivity AMP Connectors 925366-4	Crimp	Female Socket	1	Nylon, Polyamide (PA)	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Contacts Not Included	-65 ░C	105 ░C	Green	4
TE Connectivity AMP Connectors 925366-2	Crimp	Female Socket	1	Nylon, Polyamide (PA)	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Contacts Not Included	-65 ░C	105 ░C	Green	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)
