1-1394155-4

Active

TE Connectivity AMP Connectors

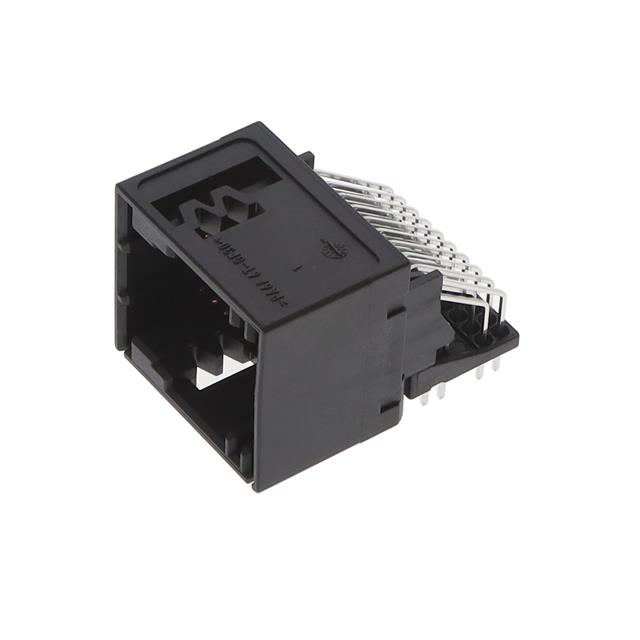

PIN HEADER, 40POS., MQS, ASSY, N

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

PIN HEADER, 40POS., MQS, ASSY, N

Technical Specifications

Parameters and characteristics for this part

Specification	1-1394155-4

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Black
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder

PIN HEADER, 40POS., MQS, ASSY, N

Part	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Number of Positions Loaded	Insulation Color	Contact Shape	Number of Positions	Termination	Insulation Material	Mounting Type	Features	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating
TE Connectivity AMP Connectors 1-1394155-4	Shrouded - 4 Wall	2.54 mm	0.1 in	Push-Pull	-40 °C	80 C	Copper Alloy	Male Pin	All	Black	Circular	40	Solder	Nylon 6T, Polyamide (PA6T)	Through Hole	Guide Pin	Header	0.118 in	3 mm	Tin	UL94 V-0	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 40 position 0.100" (2.54mm)
