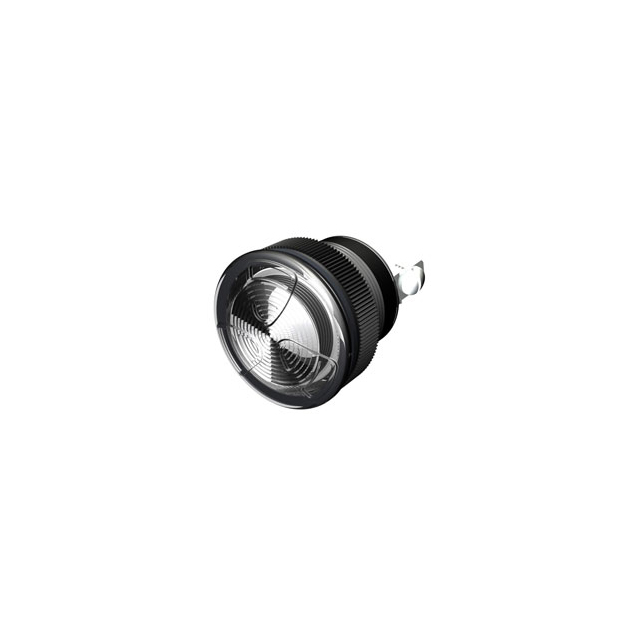

TLDH-87RG-930-S

Active

Floyd Bell Inc

TURBO LIGHT DUO; PANEL MOUNT RED

Search across all available documentation for this part.

Active

Floyd Bell Inc

TURBO LIGHT DUO; PANEL MOUNT RED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TLDH-87RG-930-S	TLDH-87 Series

Current	50 mA	50 mA
Ingress Protection	IP68	IP68
Lamp Color	Green, Red	Green, Red
Lens Color	White	White
Lens Size [diameter]	33 mm	33 mm
Lens Transparency	Diffused	Diffused
Panel Cutout Dimensions	26.8 mm	26.8 mm
Panel Cutout Dimensions	1.06 "	1.06 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Screw Terminal	Quick Connect, Screw Terminal
Type	LED	LED
Voltage [Max]	30 V	30 V
Voltage [Min]	9 V	9 V

TURBO LIGHT DUO; PANEL MOUNT RED

Part	Termination Style	Lens Size [diameter]	Panel Cutout Shape	Lamp Color	Ratings	Ingress Protection	Lens Transparency	Voltage [Min]	Voltage [Max]	Type	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Current
Floyd Bell Inc TLDH-87RG-930-Q	Quick Connect	33 mm	Round	Green, Red	DC	IP68	Diffused	9 V	30 V	LED	White	26.8 mm	1.06 "	50 mA
Floyd Bell Inc TLDH-87RG-930-S	Screw Terminal	33 mm	Round	Green, Red	DC	IP68	Diffused	9 V	30 V	LED	White	26.8 mm	1.06 "	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.13

General part information

LED Panel Indicator Green, Red Diffused 9V ~ 30V 50mA Screw Terminal
