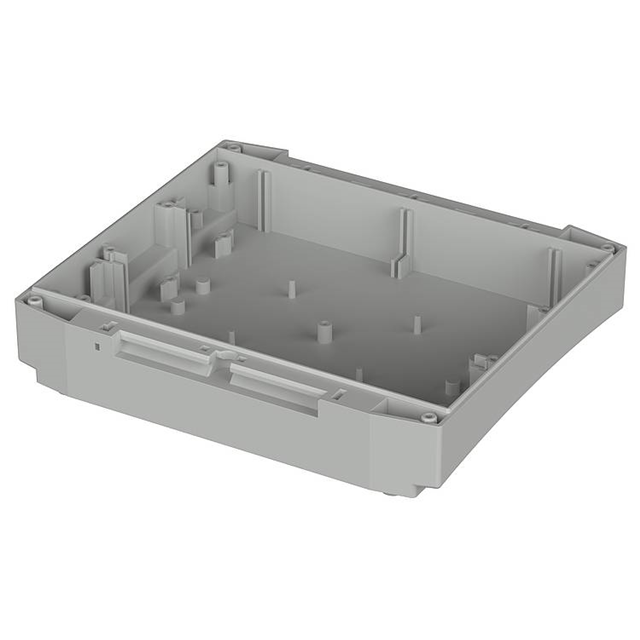

BCD 160 UT-0.5-7035

Active

Bopla Enclosures

BOX ABS GRAY 7.68"L X 6.81"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BCD 160 UT-0.5-7035

Active

Bopla Enclosures

BOX ABS GRAY 7.68"L X 6.81"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.86

Description

General part information

BCD 160 Series

Box Plastic, ABS Gray Open End(s) 7.677" L x 6.811" W (195.00mm x 173.00mm) X 1.378" (35.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BCD 160 UT-0.5-7035	BCD 160 Series

Area (L x W)	337 cm²	337 cm²
Area (L x W)	52.3 in²	52.3 in²
Color	Gray	Gray, Gray Frame, Clear
Container Type	Box	Box
Design	Open End(s)	Open End(s)
Features	PCB Supports, Card Guides	PCB Supports, Card Guides, Hinged
For Use With/Related Products	-	BOCARD 160 System
Height [z]	35 mm	35 - 70 mm
Height [z]	1.378 in	1.378 - 2.756 in
Material	Plastic, ABS	Plastic, ABS, Plastic, Polycarbonate
Material Flammability Rating	UL94 HB	UL94 HB
Size / Dimension	-	19 - 19.5 mm
Size / Dimension	-	0.748 - 1.437 in
Size / Dimension	-	179 mm
Size / Dimension	-	36.5 mm
Size / Dimension [x]	7.677 in	7.402 - 7.835 in
Size / Dimension [x]	195 mm	188 - 199 mm
Size / Dimension [y]	6.811 in	1.732 - 7.047 in
Size / Dimension [y]	173 mm	44 - 178 mm
Thickness	3 mm	3 mm
Thickness	0.118 in	0.118 in
Type	-	Cover, Lid, Frame

BCD 160 Series

BOX ABS GRAY 7.68"L X 6.81"W

Part	Thickness	Thickness	Container Type	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material Flammability Rating	Features	Design	Area (L x W)	Area (L x W)	Color	Material	Type	Size / Dimension [z]	Size / Dimension [z]	For Use With/Related Products	Size / Dimension [y]	Size / Dimension [z]
Bopla Enclosures BCD 160 UT-0.5-7035	3 mm	0.118 in	Box	35 mm	1.378 in	6.811 in	173 mm	7.677 in	195 mm	UL94 HB	Card Guides, PCB Supports	Open End(s)	337 cm²	52.3 in²	Gray	Plastic, ABS
Bopla Enclosures BCD 160 UT-7035	3 mm	0.118 in	Box	70 mm	2.756 "	6.811 in	173 mm	7.677 in	195 mm	UL94 HB	Card Guides, PCB Supports	Open End(s)	337 cm²	52.3 in²	Gray	Plastic, ABS
Bopla Enclosures BCD 160 KRD-7024						1.732 in	44 mm	7.402 "	188 mm						Gray	Plastic, Polycarbonate	Cover, Lid	19.5 mm	0.768 in	BOCARD 160 System
Bopla Enclosures BCD 160 FO-K-7035						7.008 "	178 mm	7.835 "	199 mm						Gray	Plastic, Polycarbonate	Frame	19 mm	0.748 "	BOCARD 160 System
Bopla Enclosures BCD 160 OT-F-7024						7.008 "	178 mm	7.835 "	199 mm						Gray	Plastic, Polycarbonate	Cover, Lid	19 mm	0.748 "	BOCARD 160 System
Bopla Enclosures BCD 160 FO-7035						7.008 "	178 mm	7.835 "	199 mm						Gray	Plastic, Polycarbonate	Frame	19 mm	0.748 "	BOCARD 160 System
Bopla Enclosures BCD 160 FO-7024						7.008 "	178 mm	7.835 "	199 mm						Gray	Plastic, Polycarbonate	Frame	19 mm	0.748 "	BOCARD 160 System
Bopla Enclosures BCD 160 OT-G-7024						7.047 in		7.835 "	199 mm		Hinged				Clear, Gray Frame	Plastic, Polycarbonate	Cover, Lid		1.437 "	BOCARD 160 System	179 mm	36.5 mm
Bopla Enclosures BCD 160 FO-K-7024						7.008 "	178 mm	7.835 "	199 mm						Gray	Plastic, Polycarbonate	Frame	19 mm	0.748 "	BOCARD 160 System
Bopla Enclosures BCD 160 KRD-7035						1.732 in	44 mm	7.402 "	188 mm						Gray	Plastic, Polycarbonate	Cover, Lid	19.5 mm	0.768 in	BOCARD 160 System
